Smart Folding Electrical Bicycle with Advanced Battery Technology

Product Description

Product Parameters

Color	Elegant white, diamond black, mysterious grey, etc
Size	Expansion: 1284*1045*530mm; Folding: 731*600*357mm; Packing: 785*707*353mm
Weight	17.5Kg; Gross weight (including package, vehicle, accessories) : 21Kg
Frame	16 inch main frame: American alloy, independent research and development (integrated molding without welding)
Handlebar Cross Tube	PROMAX
The Wheel Crank	Crank assembly of big tooth disc: integrated tooth disc 3/32*52T*165mm
Chain	Taiwan PYC(US Asia) single speed chain
Pedal	Hengfeng pedal model is HF-661 Specification: 9/16 opposite side hexagon DU CHP-001 anti-BK

Disc brake clamp: Czech Republic	Model: ER-1 Front plate 140mm rear plate 180mm
Tyre	Front and rear chaoyang 16*1.75 set of tires
Instrument	New thinking model: LCD-S5 protocol instrument
Battery	36V 5.2AH/8AH/10AH 21700 battery core, charging fuse 10A, discharge fuse 30A;
	Operating current 15A, charging voltage 42V, undervoltage protection 27.5V
Clutch motor	Rated power 250W rated voltage 36V, working current 13A;Famouse brand
	Noise ≤50CB maximum twist: ≥25NM; Waterproof: IP65
Controller	6 tube sine wave controller current limit: 14±1A undervoltage: 29±1V

Sensor	Speed sensor operating voltage: 4.5-6V lead pull > 20 Newton quiescent current < 5 mA
	Number of pulses 12 Waterproof grade IP65
	Torque sensor operating voltage: 4.5-6V lead tension > 20 Newtons static current < 5 mA number of pulses 12 point traction tension > 20 Newtons Hall response time < 0.001 seconds wet insulation > 2 megohm
Headlight, switch, power brake	Famouse brand

Endurance	40 km pure electricity/ 60 km power assistant
Riding mode	Pure electricity, power, manpower three riding modes

Product Description

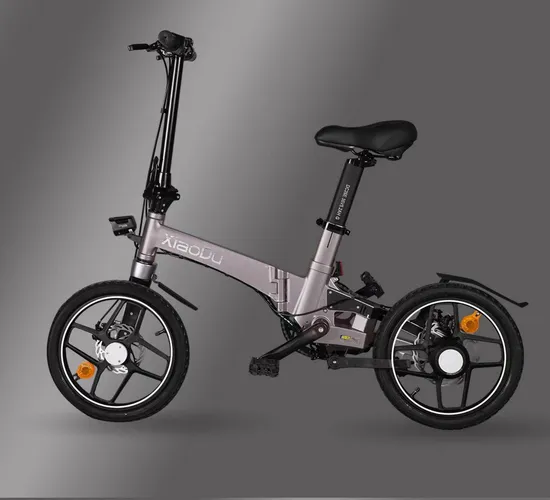

Detailed Photos Product Display
Our Advantages 1, Xiaodu folding electric vehicles are crafted using cutting-edge, premium materials from the aerospace magnesium alloy industry, truly epitomizing a symbol of elite prestige and high-end sophistication.
2, Boasting an exceptional aesthetic appeal that captivates instantly: the entire vehicle exhibits a seamless design with no welds, utilizing die-casting for a sleek and modern look. It's fashionable, lightweight, compact, and exquisitely crafted to the pinnacle of folding lithium tram technology.
3, Xiaodu electric vehicle embodies meticulous design and superb craftsmanship, featuring industry-leading patented technology in manufacturing.
Company Profile
Our Exhibition
Certifications

---
