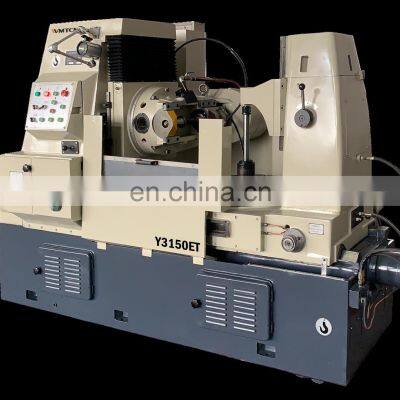

Y3150ET Standard Precision Hobbing Machine with Competitive Price

Product Description

Product Description
Properties and pecularities1. For standard precision hobbing machine, we take regulation from “GB8064-87” to test our machines cefore delivered from factory. Under normal conditions, the precision come up to “GB10095-88” 7th degree precision according to2. This machine applies to bulk or small batch of hobbing process against roller gear or worm wheel3. According to buyer's requirement, there is tangential advancing multi-heads worm wheel avaible for optionNameY3150ETMax. diameter of workpieceWith smaller column 1000mmWithout smaller column 2200mmMax. processing module16mmMax. processing width500mmMin. number of teeth processed12Max. vertical travel of tool seat800mmMax. returning angle of tool seat±60°Distance from axis of hob to operating platform200-1000mmTaper of principal spindleMT6Allowed for install hobMax.diameter 245mmMin. length 220mmMax. axis movement of hobbing cutter100mmDia. of hob mandrelφ27、φ32、φ40、φ50mmDistance from axis of hob to axis of operating platform100-1250mmSwift movement distance of operating platform hydraulic unit-Hole diameter of operating platform200mmHole taper of spindle seat of workpieceMT6Dia. of operating platform950mmPrincipal spindle REV and range of REV7step 16-125r/minSwift movement speed of tool seat520mm/minSwift movement speed of operating platform470mm/minDistance from operating platform surface to cutter racket bearing end surface700-1200mmAxis feeding volume steps and range of feeding volume8step 0.39-4.39mm/rPrincipal motor power and synchronous rev11kw 1500r/minPower of axis swift motor and synchronous rev3kw 1500r/minPower of swift motor of operating platform and synchronous rev1.5kw 1000r/minPower of hydraulic pump and synchronous rev1.5kw 1000r/minApproximate mass of machine15000kgOuter size of machine(L×W×H）3995×2040×2700mm
