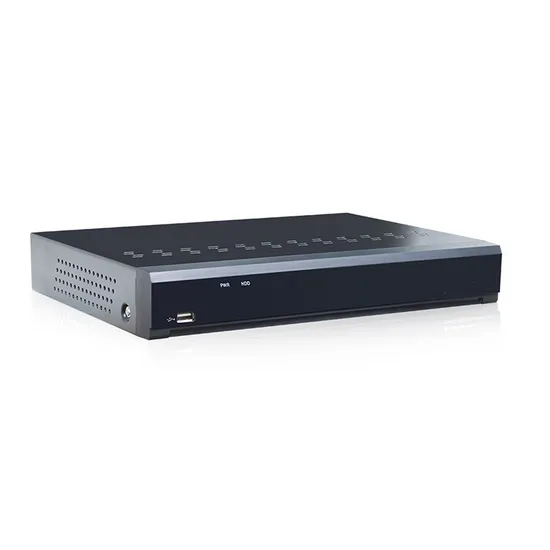

4 Channel H.265 5MP/4MP/3MP/1080P Hybrid DVR with Audio and Alarm
| Model | SE-5104DFT | SE-5104DFT-A |
| Video Compression | H.265/H.264 |
| Video System | NTSC/PAL |
| Operation System | Linux(embedded) |
| Analog video-input /output | 4CH inputs / VGA and HDMI output |
| IP Video Input | 2ch,(only IP up to 6ch) |
| Composite Video Input | up to 6ch (Analog video + IP video) |
| Audio input /output | 4CH inputs /1CH output(RCA) |
| Preview | Resolution | Analog: 5MP Lite/4MP Lite/3MP/1080P/720P/960H |
| IP:5MP/4MP/3MP/1080P/720P/960H |
| feature | single/Quad/S.E.Q. |
| Recording | Resolution | Analog: 5MP Lite/4MP Lite/3MP/1080P/720P/960H |
| IP:5MP/4MP/3MP/1080P/720P/960H |
| speed | Analog:5MP Lite:12fps;4MP Lite:14fps; 3MP Lite:9fps; 1080P:13fps;720P:25fps; |
| IP:PAL:25fps(each ch)/NTSC:30fps(each ch) |
| IP-Recording Bandwidth | 8Mbps~24Mbps(default is 8Mbps, decrease one Analog channel can increase 4Mbps) |
| Maximum output Brandwidth | 32Mbps |
| Maximum decode performance | 1080P: 52fps |
| Recording Mode | Continuous/Manual/Motion detect |
| Synchronous Playback | 4CH |
| Network Type | Lan, DHCP, and DDNS |
| HDD interface | 1SATA HDD, up to 6TB |
| Multiplex Operation | live display, record, playback, backup and network |
| USB | 2xUSB(for mouse and backup/upgrade) |
| Sensor & Alarm I/O | NO | 4 CH inputs /1CH output |
| PTZ Control | Yes (RS485) |
| Mobile Surveillance | Support Mobile Phones based on iPhone and Android operation system |
| VGA/HDMI | 1024*768,1280*1024,1440*900,1920*1080,2560*1440(2K),3840*2160(4K) |
| Power Supply | DC 12V/2A |
| Dimension(WxDxH) | 300X227X53mm |
| Working Temperature | -10°C~+55°C |
| Working Humidity | 10%~90% |
