Environmental Stone Crusher Production Line with Capacity 100-450t/H

Product Description

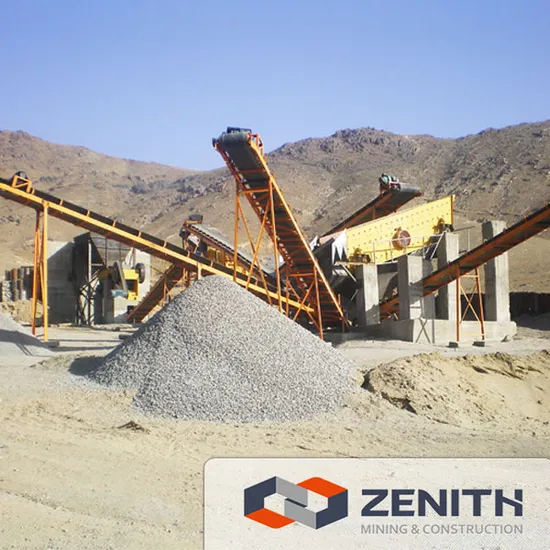

Environmental stone crusher production line with Capacity 100-450t/H
stone crusher production line introduction:
stone crusher production line includes vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and centrally electric controlling system, etc. The designed capacity is from 50t/h to 500t/h. To meet customers specific requirement, we can also add other equipments such as cone crusher, dust catcher on the production line.
Process of stone crusher production line:
Big materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for primary crushing. After first crush, the material will transferred to impact crusher by belt conveyor for secondary crush; The crushed materials will then transferred to vibrating screen for separating. After separating, the parts that can meet standard will be transferred away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. Size of final products can be combined and graded according to customers specific requirement. We can also equip dust catcher system to protect environment.
stone crusher production line features :
1. Long service life, low maintenance rate and low operation cost: The solid(strong) frame design, the large-diameter forged shaft,
and the main shaft with no thread and processed with sharp radius minimize stress concentration.
2. Quick to install: High assembly and applicability facilitate fixed and mobile structure installation. (facilitate installation for fixed
and mobile structure)
3. Easy adjustment: The main crusher frame is internally equipped with hydraulic wedge blocks to adjust the sizes of discharge openings.
4. Easy maintenance: The jaw plates are secured(fixed) by the mechanical wedge block system to prevent operators from touching
the front and rear bolts on the main crusher frame(of the main crusher).
5. Stable operation and short downtime: The high-precision (casting) movable jaw support plate, the toggle(rib) plate non-lubrication,
and the self aligning roller bearing and high-strength main shaft design ensure equipment stability, which is widely known in the industry.
6. Evenly distributed crushing force of jaw plates and machined jaw plate positioning.
Shanghai Zenith can design stone crusher production line according to customer need.

NO.	Equipment	Model	Motor(KW)	Number
	Hopper	LC3000X4000		1
I	Vribrating Feeder	GZD960X3800	11	1
II	Jaw Crusher	PE600x900	75	1
III	Impact Crusher	PFW1214III	132	1
IV	Vribrating Screen	3YK1860	22	1
Belt
NO.	Name	Length(m)	Motor(KW)	Number
B1	B800	18	7.5	1
B2	B800	23	11	1
B3	B500	25	7.5	1
B4	B500	20	5.5	3
B5	B500	15	5.5	1

---
