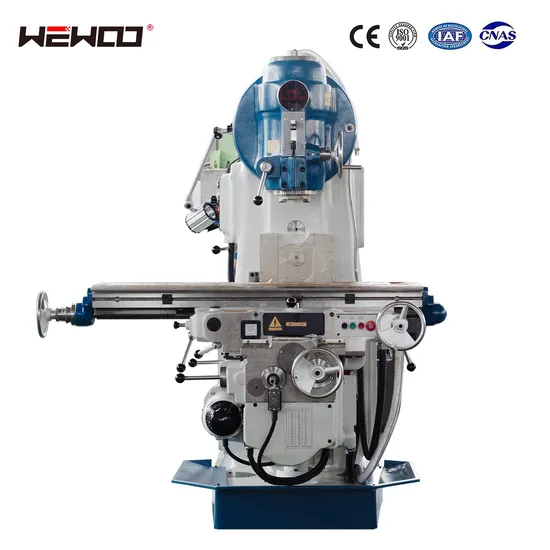

Wide Processing Range Universal Milling Machine X5032 Enhance Productivity Vertical Milling Machine

Product Description

Wide Processing Range Universal Milling Machine X5032 Enhance Productivity Vertical Milling Machine
Product Description

Guarantee of Quality The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,2. Work table and guide rail through the ultra audio spark quenching.3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical specifications:

Specifications	Units	X5032	X5040
Table size	mm	1325×320	1700×400
Table load	kg	500	500
T slot(number-width-pitch)	mm	3-18-70	3-18-90
Table travel	mm	X:700/680 Y:255/240 Z:350/330	X:900/880 Y:315/300 Z:385/365
Range of table feed	mm /min	X:23.5-1180 Y:15-786 Z:8-394	X:23.5-1180 Y:15-786 Z:8-394
Rapid speed of table	mm /min	X:2300 Y:1533 Z:770	X:2300 Y:1540 Z:770
Spindle taper		ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)	30-1500 (18 steps)
Swivel angle of vertical milling head	°	±45	±45
Distance between spindle nose and table surface	mm	60-410	30-5000
Spindle motor power	kw	7.5	11
Feed motor power	kw	1.5	3
Weight	kg	2860	4250
Overall dimension	mm	2294×1780×2150mm	2656×2159×2117mm

Detailed Photos
01
Spindle taper 7:24 1S050,
Fine adjustment of spindle.
02
Ultra-audio quenching,
precision grinding andscraping guide.
03
Spindle speed 18
steps 30-1500rpm

04
X/Y axis auto feed,
Z axiselectric lifting,
improveprocessing time.
05
3 axis digital readout is
optional,need extra cost.
06
High control accuracy,
lowspeed running stability,
with certain overloadcapacity.

Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
