2u Network Security Appliance Firewall with Intel I3 I5 I7 CPU, Firewall Appliance

Product Description

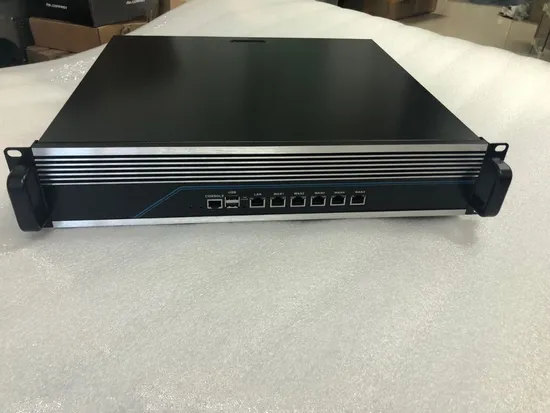

2U Rackmount B75/Z87 I3/I5/I7 6 LAN Networking Appliance [ R02-UL6F75/Z87 ]
2U Rackmount Enclosure
Support Intel®LGA1155/1150 Core/Pentium/ Celeoron i3/i5/i7 series processor
2x DDR3 SODIMM 1333/1066,Max.2* 8GB
6* LAN ,1*RJ-45 COM,2*USB 2.0,1*VGA
450mm x 430mm x 88mm
ATX Power

1	Enclosure Spec.	Standard 2U Rackmount Enclosure ( Metal) Black
2	Dimension	450mm x 430mm x 88mm (L*W*D)
3	Processor	Support Intel ® 2nd /3rd /4th Gen Corei3/i5/i7/Pentium/ Celeoron 22nm LGA1155 processor (LGA1150 as optional)
4	Chipset	Intel B75 / Z87 Express Chipset
5	BIOS	AMI 64Mbit BIOS,Support Non-Disk Boot/ Wake-ON-LAN /Auto Power On Time/WatchDog
6	Storage	1*MINI-PCIE support WiFi ; 1*mSATA ; 1*CF
7	Memory	2*DDR3 SODIMM Memory slot,Support Dual Channel 1333/1066MHz Memory ,Max. 2*8GB
8	LAN Ports	6*Intel 82583 1000/100/10Mbps Gigabit Ethernet Ports
9	Display Port	1xVGA
10	COM Port	1* RJ-45 CISCO Standard Console Port
11	USB	2* USB2.0
12	Watchdog	Support JAHC
13	OS Supported	Windows 7/Windows 8 / Windows10;CENTOUS UBANTU etc
14	Power Type	2U ATX Power ATX 24pin + 4 Pin
15	Working Temp	0ºC ~ +45ºC
16	Storage Temp	-20ºC ~ +70ºC
17	Relative Humidity	5~95% RH,No Condensing
18	Working Vibration	5-60Hz,0.1 Biodal Displacement

OEM/ODM Projects Welcome!
R&O is an professional Industrial Motherboard and IPC manufacturer with the ability to bring your concepts and ideas into viable computing solutions. We work with individuals and companies at all stages of design and manufacture, from concept to finish, in a highly focused effort to bring industry level products and services to you.
The steps as below :

Once customer provides us with concept information and detailed specifications, we will notify them of the total cost for design, prototyping, and estimated cost per unit before the project begins. From Computer-on-Modules and SBCs to embedded integrated systems and application ready platforms, R&O's OEM/ODM services cover the full project life cycle.
To maximize product availability, R&O maintain stringent quality standards in our manufacturing processes, and ensure products go through rigorous quality checks at every stage of production.
OEM/ODM Services
In order to meet the market's demand and provide the suitable solution, R&O offers board level and system level customized design and integration service for the IPC market.
OEM/ODM Service for Single Board Computer and
PCB placement / Layout / Assembly
Custom CMOS/BIOS Setting
Customized Indicated Accessories and Peripherals Pre-installed
Embedded OS
Environment Test
OEM/ODM Service for System Configuration and Integration
ID and Mechanical Customization
System Assembly
Custom CMOS/BIOS Setting
OS Installation
Completed System Test
Certification Tooling
Customized Packing Carton
OEM/ODM Service Flow Chart
R&O is committed to delivering quality solutions to our customers through our OEM/ODM services. Delivered straight from our corporate OEM/ODM Team, the products benefit our clients by lower manufacturing costs as well as a shorter lead-time for product development. welcome your inquiry !

---
