3000W Iron Aluminum Copper CNC Metal Fiber Laser Cutting Machine

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of High-percision Sheet Laser Cutting Machine:

High Tech Enterprise

HSG Laser, dated back to 2006, as a hi-tech enterprise focusing on R&D, production and sales of laser
equipment, is dedicated to serve global customers with metal forming solutions. HSG Laser has applied for
366 patents in total.


Serve 100+ Countries and Regions

HSG Laser has built 4 standardized manufacturing plants in China, 13 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 200+ R&D personnel
and can produce 8000 sets each year by right of 960000m2 production area.


Professional Research Department Team

Our R&D team has developed 3D fifive-axis bevel cutting, P40 (40000W) autofocus cutting head,double digital
chucks, Alpha T and HSG-X9000 bus system.


Large Variety in Fiber Laser Machines

HSG Laser can serve global users with 30+ kinds of machines , including sheet metal laser cutting machine,
sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine, welding machine and
automation equipment.

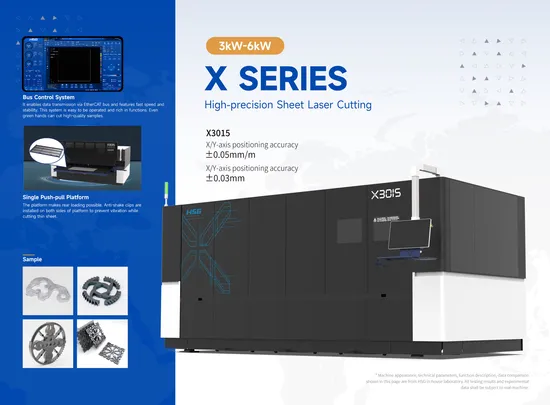

High-precision Sheet Laser Cutting Machine 1500W-6000W

* High precision means that repositioning accuracy reaches ±0.005mm.
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory.
All testing results and experimental data shall be subject to real machine.

Basic Information
< Fully-sealed Structure, Eco-friendly Cutting >

With top cover, the machine is fully sealed and can discharge cutting smoke while cutting with the help of zoning ventilation system in cutting area.
< Bus Control System >
It enables data transmission via EtherCAT bus and features fast speed and stability.
This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.



< Single Push-pull Platfrom >
The platform makes rear loading possible. Anti-shake clips are installed on both sides to prevent sheet vibration during cutting.

Tips: The configurations above vary from model to model. The latest files shall prevail.
< Autofocus Laser Cutting Head >

The cutting head can adjust its focus according to laser beam mode to make sure of mirror-like surface.

Servo autofocus system
Automatic cooling and obstacle avoidance
Three built-in protective lens
Anti-pollution design
Give early warning if abnormal

Specification
Applications
HSG Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	X1212	X2512	X3015
Laser Power	1500-6000W		300-6000W
Working Area (L*W)	1250*1250mm	2470*1250mm	3000*1500mm
X/Y Axis Positioning Accuracy	0.03mm/m
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. * The price of machine with different power is also different. Please contact the customer service staff for consultation.* All testing results and experimental data shall be subject to real machine.

Sample Display


Office Area

Visit & Exhibition

Certifications

Test & Packing

QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE

Δ One-year Warranty
All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.
Δ Exclusions
Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the
warranty.

---
