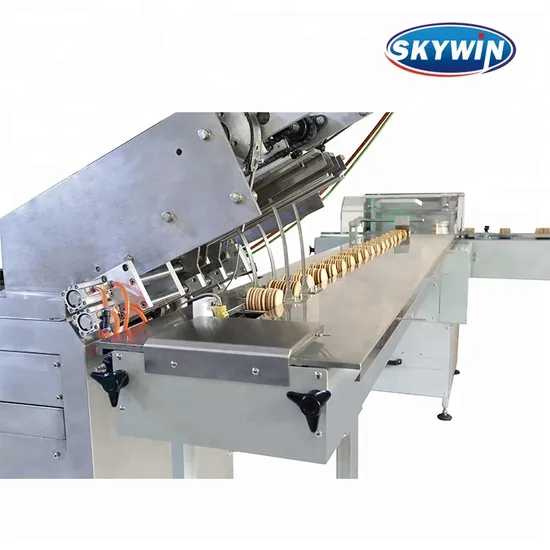

Double Lane Biscuit Sandwich Making Machine with on-Edge Packing Machine

Product Description

Products Description
Skywin Provide different kind of biscuit sandwich machines. The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese.It's used for sandwiching for different flavour then transfer to the packing machine automatically.Energy saving and labor saving.

Technical Parameter
Product name	Single Lane Sandwiching Machine	Two Lane Sandwiching Machine
Biscuit size	Rectangle/Square	Rectangle/Square
	L(35-70mm)×W(30-55mm) thickness:3-8mm	L(35-75mm)×W(30-60mm) thickness:3-8mm
	Round	Round
	Φ35-70mm thickness:3-8mm	Φ35-75mm thickness:3-8mm
Capacity	100-600 pcs/min	600-1200 pcs/min
Operating voltage	single-phase AC 220V/50Hz	single-phase AC 220V/50Hz
Machine size	7000 × 1900 × 1470mm	7430 × 3300 × 1500mm
Weight(Cream tanks capacity)	1120kgs(40L)	1350kgs(50L)
Total power	4kw	4kw

Main electric component (Standard type):(can be customized)
No.	Description	Manufacturer		No.	Description	Manufacturer
1	Main motor	DELTA servo motor		9	AC contactors	Schneider
2	Cream motor	TAIWAN Tunglee		10	Circuit breakers	Schneider
3	Motor of Conveyor table	Chinese		11	Relays	ORMON
4	Programme control	SIEMENS		12	Photocell switch	Korea
5	Transducer	SIEMENS		13	Proximity switch	Korea
6	PLC Touch Screen	SIEMENS/DELTA		14	Switch & button	Schneider
7	Encoder	DELTA		15	Thermocouple	Chinese
8	Power	Schneider		16	Heat tubes	Chinese Main Features

(1). PLC for simple operation including machine set-up, hopper controls and speed adjustments (2). Removable scrap trays are provided for simple scrap collection and machine cleaning
(3). Easy to operate: Simple adjustments for machine speeds, cream volume
(4). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster (5). Separating cream holding tank and feeding system
(6). No biscuit no cream system
(7). The pusher with double chain assure machine running stable and cleaning and maintenance
(8). Every cream hopper with independent motor and reducer
(9). Mobile cream hopper can cleaning while finish working separately
(10). SUS 304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.
(11). Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes

Details Images



Packing Type of Biscuit
Successful case

---
