Product Details
Product Description
Product Description

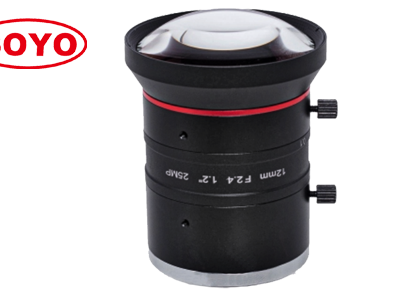

12mm 1.2" 25Megapixel Lenses Manual iris Machine Vision FA 0.39% TV Low Distortion Industrial Recognition 8K Camera Optical Lentz Automatic CCTV Lens C Mount Factory Automation SMT AOI ITS Positioning Measurement Scan
High resolution : 25 megapixel cover all 8K & 4K
Large format : 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion: 0.39% TV / -0.28% Optical low distortion for machine vision
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI
Model
| S12MV1224-25M
|
Resolution
| 25 Megapixel
|
Format
| 1.2" (2.74μm)
|
Focal Length
| 12mm
|
Max image circle
| Φ19.3mm
|
Aperture (Close)
| F2.4 Manual iris
|
Angle of View (°)
| 1.2"
| 76.2*62.4*55.33
|
M.O.D
| 0.1m
|
Relative Illumination
| 81.4% ( WD=300mm F2.8 )
|
Distortion
| 0.39% ( TV ) ; -0.28% (Optical )
|
B.F.L
| 18.5mm , WD=600mm
|
CRA
| 6.02°
|
Size
| Φ50*66.96mm
|
Projector
| Center ≥200lp/mm; Edge Φ16 ≥160lp/mm
|
Mount
| C
|
Weight
| 300g
|
Marks
| AT430~680nm T≥85%; 15G Element
|
(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
Whatsapp: 86-18949838193
Email： china@soyocctv.com
Skype/wechat： soyocctv
>>
