Product Description
Product Description

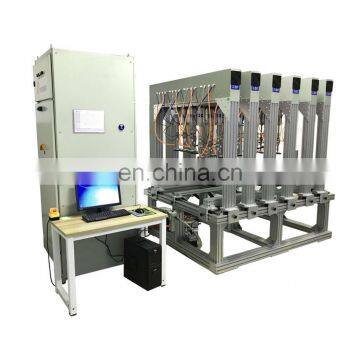

Company logo Product DescriptionDynamic static Mechanical load tester/Mechanical load testing machine/PV Module testing machine Users This test is to determine the ability of the module to withstand wind, snow , staitc or ice loads Testing StandardIt's conform IEC 61215-2:2016, IEC61646 , IEC62782 etc testing standard The Main Technical Parameter Product NameDynamic static Mechanical load tester/Mechanical load testing machine/PV Module testing machineTesting standardIEC61215-2:2016,IEC61646,IEC62782 etc Testing sampleSolar panelTesting sample size2000×1000mm (can customized)Machine table appearance dimension280(L)×180(D)×195(H)cm (can customized)Test positive load5400 Pa (pressure can set)Test Reverse load2400 Pa (Pressure can set)Cycling times Free set upDynamic load test frequency7s±3sDynamic load1000 pa, 1000 timesPressure control accurate5%Pneumatic and force value feedback waysLow friction force cylinder, tensile pressure MaterialsAluminum profile structure Current continuity systemDC power, DC 150V/2A, real-time monitor module inner current continuityCylinder4 groups , in total 8 pieces, single the maximum outpout >200kg, telescopic stroke:125mm Sucker8 groups, in total 32 piecesSucker diameter120mmSucker (with cylinder) space horizontal and vertical≤200mmSucker anglecan rotation angle ≥15°Control systemComputer control Interface displayComputer with real-time curve display Additional functionFault alarm functionElectricity220V 50HZ Products images show Company Information Certificate The Relative product Packaging & Shipping Nameplate
>>
