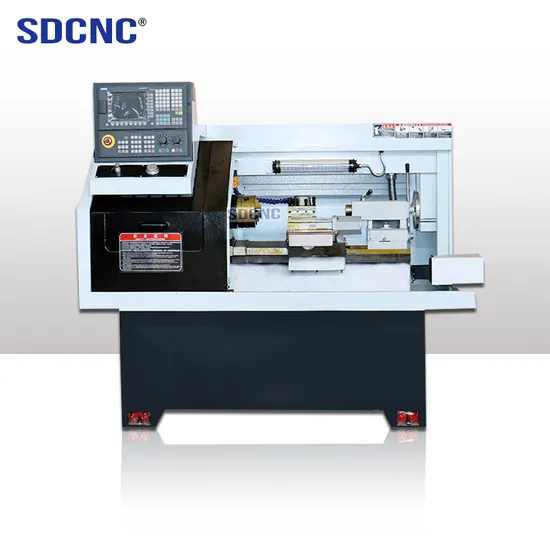

SDCNC Ck6125 High Precision Metal Working CNC Lathe Machine with Slant Bed Lathe Manufactured

Product Description

One Piece Casting and Hard Guide Way CNC Lathe
The machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and high righdity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and coule drill and bore the holes.
Classification and characteristics of CNC lathe with flat bed Uses: This machine is widely used in the processing and manufacturing of electrical, instrumentation industry, automobile and
motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware, clocks, glasses, stationery, motors,
valves, gas fittings and other complex parts. It is the most ideal and efficient equipment in the hardware machining industry. Product Parameters

SPECIFICATIONS	Units	CK6125
Swing over bed	mm	230
Swing over cross slide	mm	125
Distance between centers	mm	200
Spindle bore	mm	50
Spindle bore taper	-	MT5
Spindle nose type	-	A2-4
Spindle speed steps	-	Stepless
Spindle speed range	rpm	150-2500
Turret/tool post	-	Gang type
Tool size	mm	16 x 16
X axis travel	mm	300
Z axis travel	mm	320
X axis rapid traverse	mm/min	8000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	Φ45
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	50
Main spindle motor	kw	3
Coolant pump motor	kw	0.09
Machine weight	kg	850
Overall dimension	mm	1500x1050x1750

---
