Timeway Vmc650 3 Axis CNC Vertical Machining Center CNC Milling Machine Center for Metal

Product Description

Product Description

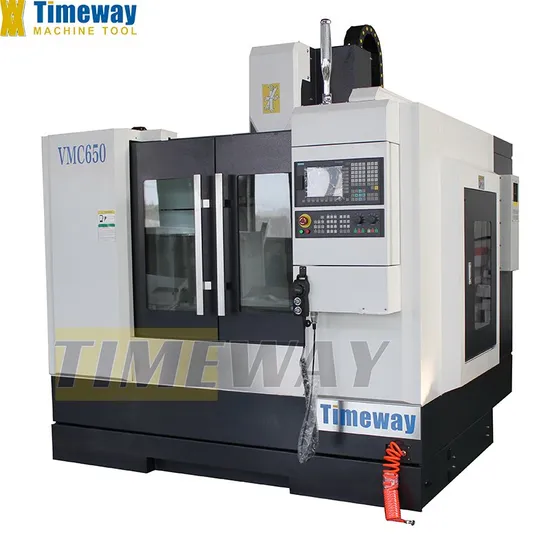

3 axis cnc vertical machining center VMC650

SPECIFICATION	UNIT	VMC650
Worktable size (LxW)	mm	1000×420
T-slot (No./width/pitch)	mm	5-18-80
Loading capacity	kg	400
Longitudinal travel (X)	mm	700
Cross travel (Y)	mm	450
Vertical travel (Z)	mm	450
Distance from spindle nose to table	mm	130-630
Distance from spindle center to column	mm	495
Spindle taper	-	BT-40
Spindle speed	rpm	8000
X/Y/Z-axis rapid feed speed	m/min	15/15/15
X/Y/Z-axis servo motor (FANUC)	-	β12/β12/β22
X/Y/Z-axis positioning accuracy	mm	±0.01
X/Y/Z-axis repositioning accuracy	mm	±0.008
Main motor power	kw	7.5/11
Air pressure source	kg/cm2	6-8
Power capacity	Kva	18
Tool magazine capacity	T	12 (Crousel)
Guideway type	-	Sliding
Machine weight	kg	3500
Machine dimensions (LxWxH)	mm	2400×1900×2400

MAIN CONFIGURATION & ACCESSORIES: 1. Resin sand casting; 2. X, Y, Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES: 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement systems; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer.

Detailed Photos

CNC controller KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Taiwan ATC carousel type and disc type are available as option

Taiwan precision spindle Standard with belt driven spindle, optional for direct driven spindle

One-stop Shopping
Please click on the picture to enter related category products
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
