Basic Info.
Classification
Mini Laminating Machine
Application
Particle Board, Fiberboard, Plywood, Aluminium Plate, Packaging Paper, Film Material, Color Printing, Soft Board
Automatic Grade
Automatic
Membrane Material
PET Film
Plastic Film Mulching Modes
Hot Laminating
Max. Rewind Diameter
550mm
Roll Laminating Width
100-420mm
Laminating Speed
6-55m/Min
Transport Package
Wood Case
Specification
1380× 1200× 1060mm
Production Capacity
100 Set/Sets Per Month
Product Description

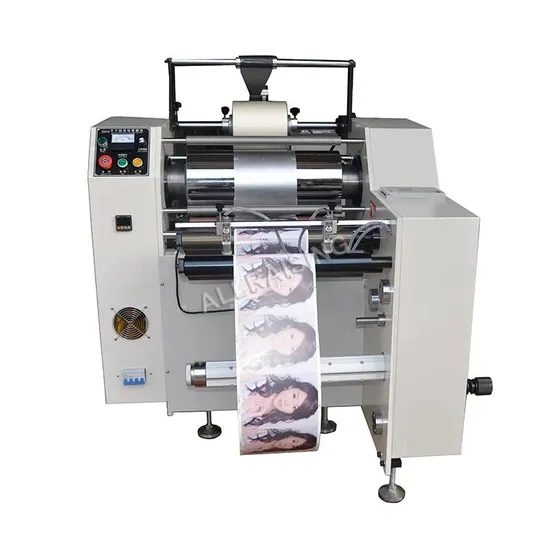

Product Description Best Price Roll To Roll Sticker Label Laminating Machine
Product Parameters
Name | BJ-500 Roll to Roll Label Heat Laminate Machine (Correcting) |
Model | BJ-500 |
Max. Rewind diameter | 550mm |
Roll laminating width | 100mm(min)~420mm(max) |
Core Diameter | 76mm |
Hot Roller length | 500mm |
Laminating Speed | 6~55m/min |
Laminating Temperature | 80-130ºC |
Heating Way | Heating oil |
Heat conducting oil Model | 320# |
Voltage and Power | 380V,6KW |
Overall Dimension | 1380×1200×1060mm |
Weight | 0.7t |
Standard configuration | Cutting membrane knife group or dusting roller device |
Note | The film temperature can be customized according to customer demand. |
Minly applicable to Cardboard,Coated Paper, synthetic Paper,PP reel materials the lamination. |
It can save the self-adhesive glossy film laminating cost by about 45%. It can save the self-adhesive coarse film laminating cost by about 50%. It can save the self-adhesive laser film laminating cost by about 60%. |
Detailed Photos
Finished Product Display
Packaging & Shipping
Packaging | By container or standard export packing per machine |
Delivery time | 15-30 days after payment received |
Company Profile
FAQ Q: Why don't person reply to me? A: Our person is 24hours on-line. When nobody reply you , please leave your requirements
on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our
reputation. Best quality is our principle all the time. You can be assured on our production
completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower
than the trade company because we are manufacture. You will get competitive price and
better quality. Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are
manufacture. You will get lower.
>>
