Reliable Performance Teflon Toroid Coil Winding Hook for Tensioner Parts

Product Description

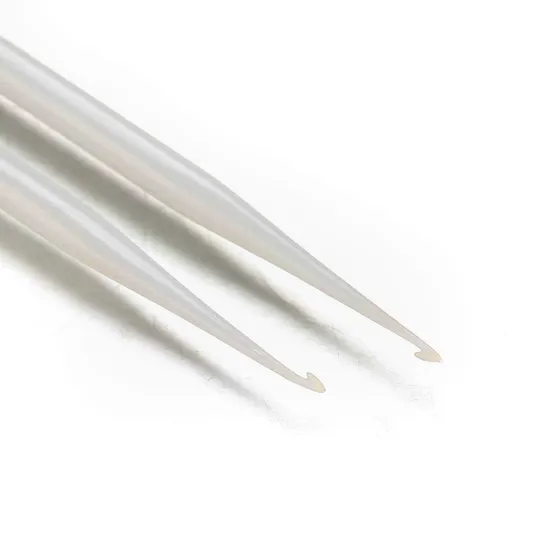

Winding Coil Machine Teflon Toroid Single Coil Winding Hook
Detailed Product Description:
Toroid coil winding hook is made from Teflon, Nylon. It is one light And handy, high-strength, resilient tool. It is used for winding toroid coil. Make. The wire be wraped tight with the toroid core. Avoid the magnetic wire of insulation Film be damaged. The single hook there are screw which need connect with the Handle to use(the handle is optional), or used in hook winding machine. The double Hook can be used to wind direct.
Avoid the magnetic wire of insulation Film be damaged. The single hook there are screw which need connect with the Handle to use(the handle is optional), or used in hook winding machine. The double Hook can be used to wind direct.

Description	Part No.	Suited wire Dia.	W(mm)	T(mm)	L(mm)	D(mm)
hand held double hook	21	≤ 0.14mm	0.94	0.44	130.00	7.00
hand held double hook	12	≤ 0.14mm	1.00	0.50	130.00	7.00
hand held double hook	23	≤ 0.14mm	0.92	0.50	130.00	7.00
hand held double hook	24	≤ 0.16mm	0.96	0.60	130.00	7.00
hand held double hook	25	≤ 0.16mm	1.04	0.70	130.00	7.00
hand held double hook	8	≤ 0.16mm	1.00	0.68	130.00	7.00
hand held double hook	22	≤ 0.16mm	1.10	0.64	130.00	7.00
hand held double hook	7	≤ 0.16mm	1.20	0.86	130.00	7.00
hand held double hook	11	≤ 0.2mm	1.48	0.84	130.00	7.00
hand held double hook	26	≤ 0.3mm	1.29	0.76	130.00	7.00
hand held double hook	6	≤ 0.4mm	1.85	1.34	130.00	7.00
hand held double hook	29	≤ 0.4mm	2.10	1.37	130.00	7.00
hand held double hook	27	≤ 0.45mm	2.60	1.40	130.00	7.00
hand held double hook	28	≤ 0.45mm	2.22	1.34	200.00	7.00
hand held double hook	5	≤ 0.5mm	2.90	1.74	130.00	7.00
hand held double hook	14	≤ 0.7mm	3.21	1.84	200.00	7.00
hand held double hook	L14	≤ 0.7mm	3.20	1.84	220.00	7.00
hand held double hook	18	≤ 0.7mm	3.1	1.6	200.00	7.00
hand held double hook	9	≤ 0.8mm	3.75	2.00	247.00	7.00
hand held double hook	16	≤ 0.8mm	3.78	2.34	215.00	7.00
hand held double hook	L16	≤ 0.8mm	3.78	2.34	230.00	7.00
hand held double hook	15	≤ 1.0mm	4.66	3.24	200.00	7.00
hand held double hook	L15	≤ 1.1mm	4.70	3.10	220.00	7.00
hand held double hook	10	≤ 1.1mm	5.80	3.20	247.00	7.00
hand held double hook	17	≤ 1.3mm	5.80	3.90	225.00	7.00
hand held double hook	L17	≤ 1.3mm	5.80	3.90	250.00	7.00
hand held double hook	3	≤ 1.7mm	7.00	4.80	240.00	11.62
hand held double hook	4	≤ 2.0mm	10.00	7.00	240.00	10.0

---
