Product Description
Product Description

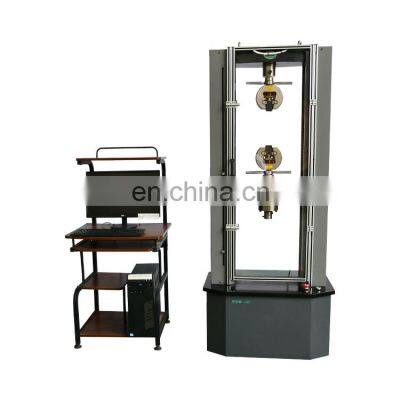

WDW-100 Computerized Universal Testing MachineUsage OverviewWDW-100 series of test machine is suitable for the mechanical properties testing and research of metal, rubber, plastic and other materials. It can be widely used in machinery, metallurgy, construction, transportation, aviation, aerospace, shipbuilding, ceramics, automotive, medicine and electronics. 1. Loading frame a.The main frame includes the table top, the middle beam, the moving beam, the column and the ball screw. All the parts are steel parts. The structure is compact and the connection is firm, which ensures the rigidity of the testing machine and the smooth running of the moving beam. 2. The test machine is divided into upper and lower test spaces, the upper space is subjected to tensile test, and the lower space is subjected to compression and bending tests, which reduces the trouble of different test replacementtest aids, and ensures the accuracy of the test machine and is easy to operate. c. The test space is sufficient to meet the requirements of various tests to the utmost extent. d. The frame protection cover ensures the cleaning of the ball screw. The beam limit device can arbitrarily set the limit position of the| moving beam up and down to ensure the safe operation of the test machine.2.Beam drive a. The AC servo drive system controls the AC servo motor, and the ball screw is rotated by the precision planetary reduction system to move the beam up and down. b. Using the gapless arc timing belt to link the two lead screws, high efficiency, low noise, ball screw drive loading, force valuec. Full digital closed loop control.3.Test machine controller a. Set load, displacement, deformation measurement and display, speed control, test parameter setting, test machine calibration, data processing, report output and other functions in one. b. The test force and deformation amount are enlarged in four steps. c. Fully automatic data processing. The main items include: elastic modulus, upper and lower yield points, maximum points, non-proportional stress points at break points, and partial curve amplification. 4. Data processing and curve drawing and output. a. Display mode: screen display b. Operation mode: Easy operation through the 101 keyboard and mouse.5.Other characteristics a. Power supply use 220V or customized. b. Safety protection device can prevent problems such as over-travel, overload, leakage and current overload. c. Appearance plexiglass shield. d. A variety of special accessories are available as an optionProductWDW-100 Universal Testing MachineMax. Test Force100KNEffective Range0.4%~100%Test Force Relative Error≤±0.5%Beam Moving Speed Range0.01~500mm/minMax. Stroke of the Beam1000mmStretching Stroke700mmEffective Test Width400mmWeight440KGsOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
>>
