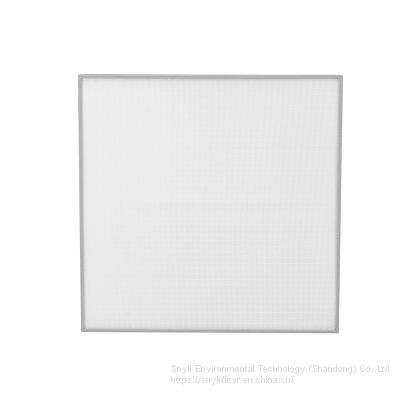

Mini Pleat HEPA Filter for laminar air flow hoods

Product Details

Product Description

Product Description
HEPA Filters are made from imported paper media (Micro-glass fibre paper) of international grade.Filters are manufactured in a cleanroom to avoid initial dust deposition on media to have enhanced life & performance.
Specification
Frame: Anodized aluminum
Media: Glass fiber
Efficiency:
H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
MPPS:≥95% / DOP: ≥99.9%@0.3 μm
H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
U15 (EN 1822)/MERV 20 (ASHRAE 52.2)
MPPS: ≥99.9995% / DOP: ≥99.9999%@0.12 μm
U16 (EN 1822)/MERV 20 (ASHRAE 52.2)
MPPS: ≥99.99995% / DOP: ≥99.99999%@0.12 μm
Separator: Hot melt
Sealant: EPDM
Max. Temperature: ≦ 70°C
Max. Humidity: ≦ 100% RH
Technical Specification

Dimensions			Rated Air Flow (m3/h)	Initial Pressure Drop (Pa)			Filtration Efficiency (%)
W(mm)	H(mm)	D (mm)	Rated Air Flow (m3/h)	0.25 m/s	0.5 m/s	0.75m/s	Filtration Efficiency (%)
305	305	69	250	≤120	≤220	≤240	99% 99.9% 99.99% 99.999% 99.9999% 99.99999%
305	610	69	500
610	610	69	1000
915	610	69	1500
1170	570	69	1800

Application
1) Clean room fresh air conditioning system, end filter of clean room air inlet.
2) Main air filtration of FFU air cleaning equipment.
3) Widely used in Electronics, Optics, Semiconductors painting, Chemical, Cometics, Pharmacy, Hospitals, Automobile industries etc.
4) End filter of commercial and household air purifiers.
