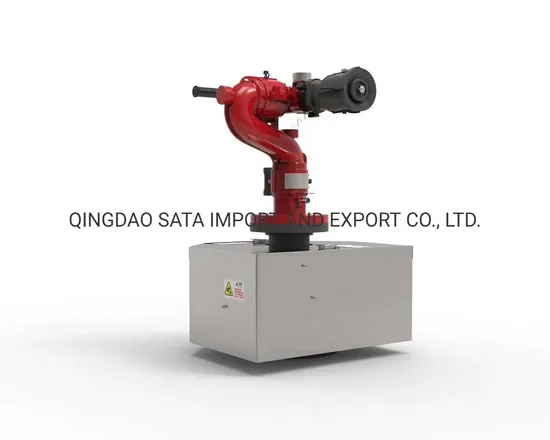

Electric Aluminum Material Fire Fighting Monitor

Product Description

Electric Aluminum Material Fire Fighting Monitor
Our Series Fire-fighting monitor,Automatic tracking and Positioning jet fire-fighting devices and fire-fighting robots fully reflect our company's technological innovation ability. The products are exported to foreign countries and widely used in large space fire-fighting systems, petrochemical fire-fighting, wharf fire-fighting, ship fire-fighting, vehicle-mounted fire-fighting guns, life-saving, rescue equipment, precision equipment fire-fighting and other fields. They are few in China. Professional fire-fighting gun manufacturer with R&D capability and export capability.
1.Advantages:
a. Concentrated jet flow and long range.
b. Large action area and multi-function.
c.Easy to operate and the barrel can either rotate or fasten.
d.Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines.
2.Working Principle:
The PSKD series worm drive foam/water dual fire monitor also consists of base, shell body, nozzle, barrel and horizontal swing mechanism. What differs is that this model adjusts angles by worm drive group. Foam solution flows into shell from base and was atomized when it pass the nozzle. The monitor inhales air to make the foam solution become foams and shoot out from barrel. Operators can adjust its elevation and horizontal angle while using.
3.Technical Parameters:
We make available customized design for our clients special request.
Application: Boat,Fire Fighting Truck,Fire Robot,Anti-riot Water Cannon Vehicle
4.Picture of component:
Others models optional
5.Specification:
Model: PSKD5-200
Flow Range:5-200L/S Automatic Nozzle
Working Pressure: 10 bar~ 12 bar
Max Reach @ Max Flow: 80m
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):bronze
Material (nozzle):Aluminum
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 28kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:30L/S@ 8 bar
Pipe dimensions for installation: 3 Inch
Monitor Inlet :3" male BSP or DN100 flange
Monitor Outlet:2.5 inch (65mm)

Weight in Kg Incl. Nozzle Approx.	24KG	Range of Motion	+90°/-55°vertical , 360°Horizontal
			Other Degrees Adjustable
Material	Body Stainless 304(standard) Stainless 316 (optional)	Speed (of high speed version)	24°/sec rotation, 10°/ sec vertical
	Aluminum Hard Anodized Nozzle	Power Consumption Max.	24V @ 7.5A
	Gear bronze	Power Supply	24 VDC
Flow Range @ 7 Bar (Max recommended)	Nozzle Model: AN40 - 24Vdc Jet Spray Nozzle-Adjustable	Reaction Force	Up to 900N
		Mechanical Installation	Support must withstand 4000 N of force
	Flow rates:1200LPM-1800LPM -2400LPM@100PSI	Options	Network, radio remote , aux control etc.
		Max. Reach @ 7 bar	60M

6.FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if the cost is below USD30 with freight on your cost.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid after finish production before shipment.
Q: what is your main market?
A: Western Europe,North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia.
Q: Can I have my own customized product?
A: Yes, we can supply logo painting design and package design based in our MOQ.

---
