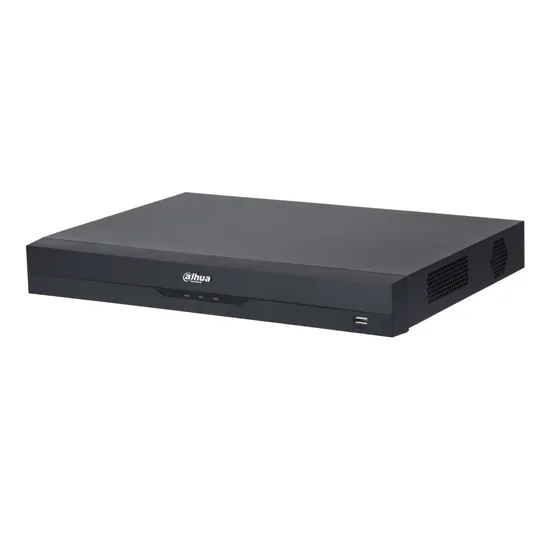

Dahua DVR 32CH Penta-Brid 5MP Value/1080P 1u 2hdds Wizsense Digital Video Recorder

Product Description

Overview XVR5232AN-I3 32 Channels Penta-brid 5M-N/1080P 1U 2HDDs WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression.
> Supports 16-channel AI-Coding.
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
> Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
> Up to 4 channels video stream (analog channel) Perimeter Protection.
> Up to 16 channels video stream (analog channel) SMD Plus.
> Up to 2 channels video stream (analog channel) human face recognition.
> IoT & POS functionalities.

Specifications

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel) )

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

Encoding Capacity

Main stream: 5M-N@(1fps-10fps); 4M-N,1080p@(1fps-15fps); 1080N, 720p, 960H, D1,CIF@(1fps-25/30fps) Sub stream: D1, CIF@(1fps-15fps)

Dual-stream

Yes

Video Bit Rate

32 kbps-6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA, 1 TV VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

1/4/8/9/16/25/36

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Samsung

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

IOS; Android

Interoperability

ONVIF 21.12; CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; video loss; tampering

Anomaly Alarm

No disk; storage error; disk full; camera offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports

TV Output

1 channel

Audio Input

1-channel RCA 32-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.

RS-485

1 port, for PTZ control

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

DC 12V, 5A

Power Consumption

<16 W (without HDD)

Net Weight

1.90 kg (4.20 lb)

Gross Weight

3.20 kg (7.00 lb)

Product Dimensions

375.0 mm × 289.4 mm × 53.0 mm (14.76'' × 11.40'' × 2.09'') (W × D × H)

Packaging Dimensions

433.0 mm × 141.0 mm × 366.0 mm (17.05'' × 5.56'' × 14.41'') (W × D × H)

Operating Temperature

-10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%-90% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

Packaging & Shipping
FAQ Q: Why choose us?
A: We directly cooperate with the world's top manufacturers Dahua, Hikvision, and Imou, you will get the most favorable prices and the best technical support.
Q: How to confirm whether the product is Dahua's genuine English version?
A: You can download software from the official website ofDahua.Only Dahua's genuine product is compatible with the software. And we promise all of our products are genuine Dahua products.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.

---
