Basic Info.
Power Type
Permanent-magnet DC
Applicable Environment
Beach
Transport Package
Carton and Pallet
Production Capacity
10000 Sets Per Month
Product Description

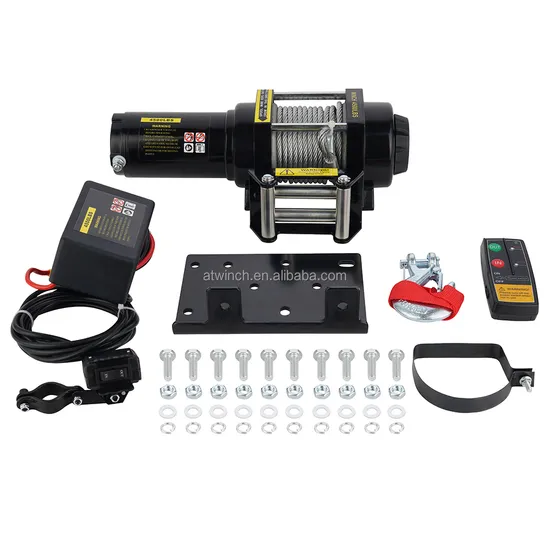

Pure copper motor and power cable, Smooth and reliable all-metal three-stage planetary gear train
Rated line pull of 4500 lbs 1.88HP permanent magnetic motor 3-Stage planetary gearing with 135:1 ratio Sealed solenoid with circuit breaker Easy to engage ergonomic freespool control knob Wire rope measures 5.4mm x 10.5m Heavy-duty, clevis pinned, latched hook 4-way roller fairlead One year warranty
4500LBS WINCH SPECIFICATIONS
| Rated line pull | 4500lbs(2041kgs) single line |
| Motor | Permanent magnet,1.4kw/1.88hp |
| Gear reduction ratio | 135:1 |
| Gear train | 3 Stage Planetary |
| Cable (Dia x L) | Diameter0.21"(5.4mm)Length34.4'(10.5m) |
| Control | Remote switch |
| Drum size (Dia x L) | Dimaeter2.0"(51mm)Length2.9"(74mm) |
| Clutch | Sliding Ring Gear |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 348mmx110mmx112mm |
| Mounting bolt pattern | 120mm*76mm,Ø9 |
| Weight | N.W. 10kg G.W. 11 kg |
| Packing size | 400mmx340mmx200mm 1PC/CTN |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 24.(7.3) | 28 |
| 1500(680) | 22.5(6.9) | 78 |
| 2500(1134) | 15.6(4.8) | 115 |
| 3500(1588) | 9.5(2.9) | 147 |
| 4500(2041) | 7.2(2.2) | 176 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull
lbs(kgs) | Total Rope on Drum
ft(m) |
| 1 | 4500(2041) | 4.9(1.5) |
| 2 | 3520(1597) | 14.4(4.4) |
| 3 | 2600(1179) | 19(5.8) |
| 4 | 2050(930) | 26.6(8.1) |
| 5 | 1630(739) | 34.4(10.5) |
>>
