Molybdenum CNC Wire Cut Machine Hanqicnc

Product Description

Medium-SPEED WIRE EDM with lifting liquid tank ,FU series
Product Parameters

		HQ-400FL	HQ-2000FL
Machine tool dimensions	Mm	1350 by 1720 by 2170	4100 * 4600 * 2600
Cabinet size	Mm	All in one	Fixed table
Weight of machine tool	KG	2200	15000
Table travel	Mm	400 * 320 * 300	2000 * 1200 * 800
U, V-axis stroke	Mm	± 35	± 25
Z-stroke	Mm	300	300
Maximum cutting thickness	Mm	300	800
Maximum machining taper (angle/thickness)	°/mm	± 15 °/80	± 6 °/80
Electrode wire diameter range	Mm	Φ0.12-0.2	Φ0.12-0.2
Machine tool power	Kw	≤2.3	≤4.5
Work area
Size of worktable	Mm	660 * 480	2530 x 1380
Working fluid tank	Mm	1000 x 580	2800 x 1600
Table load-bearing weight	KG	500	12000
Working fluid tank
Filtration accuracy	Μm	10	10
Maximum volume of the tank	L	130	130
Pulse power
Drive mode (x/Y)		Fully closed-loop linear motor	Fully closed-loop linear motor
Drive mode (U/V)		AC servo	AC servo
Surface roughness	Μm	Ra ≤0.5	Ra ≤0.6
Maximum cutting speed	Mm2/min	≥300	≥300
Minimum molybdenum wire loss	Mm2	150,000 mm2/zero loss	150,000 mm2/zero loss
Speed of silk handling		Multilevel frequency control	Multilevel frequency control
CNC system
Data Systems		HQWNC or AUTO CUT	HQWNC or AUTO CUT
Hardware configuration		Fan-free industrial computers, 32G solid-state drives, standard PC keyboards	Fan-free industrial computers, 32G solid-state drives, standard PC keyboards
Communication interface		USB, RS232	USB, RS232
Control the number of axes		6-AXIS control 4-axis linkage	6-AXIS control 4-axis linkage
Process editing		CAD graphics automatic generation and international standard ISO common code	CAD graphics automatic generation and international standard ISO common code
Language interface		Chinese, English, Russian, Japanese	Chinese, English, Russian, Japanese
Units of size		Metric system, English system	Metric system, English system
Manual control		Standard configuration	Standard configuration
Power source		380V ± 10% , 50/60HZ, 2 kva	380V ± 10% , 50/60HZ, 2 kva
Environmental conditions		15-30 ° C (temperature)/40-80% (humidity)	15-30 ° C (temperature)/40-80% (humidity)

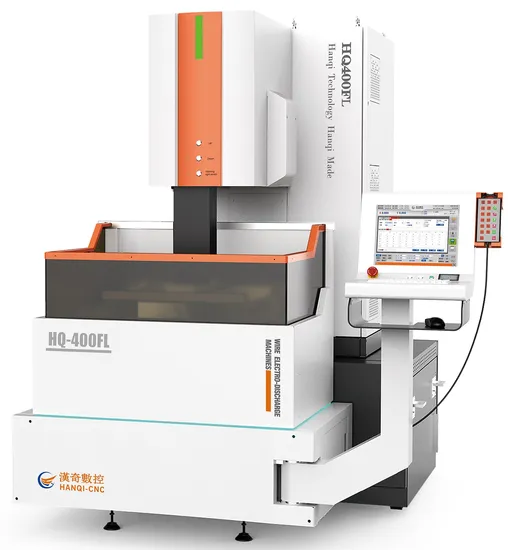

Linear Motor Medium-SPEED WIRE EDM
HQ-400FL
*Ultra low molybdenum wire loss
*Breaking through 150000 mm2 without wire loss, we provide you with additional income (cutting conditions: 9000mm2/h water-based cutting fluid, steel workpiece height 60mm)
*Maximum cutting efficiency: exceeding 300mm ²/min
*Optimal surface roughness: Ras0.5um
Software

Quality Control
Detailed Photos
Sample Parts


Certifications
Company Profile
1) The chairman has worked at Hanchuan Machine Tool Factory in China (1986-2005), focusing on the field of electrical machining for nearly 40 years;
2) In 2005 The company was established , with its factory located in Suzhou High tech Zone, China, covering an area of 20000 meters ²;
3) It is a high-tech enterprise in Jiangsu Province and a specialized, refined, and innovative enterprise in Jiangsu Province;
4) With over 80 employees and nearly 20 research and development personnel, it is a research and development production oriented enterprise;
5) Implement the ISO9001 quality management system and use the Carl Zeiss three coordinate system for precision testing of machine tool components;
6)In 2016, we engaged in product cooperation with Beijing Agie Charmilles Industrial Electronics Co., Ltd;
7)In 2017,we obtained titles such as Jiangsu High tech Enterprise and Jiangsu Private Science and Technology Enterprise;
8)In 2018,Introducing internationally leading production and manufacturing processes, stricter quality management systems, and standardized production processes implemented by Swiss enterprises;
9)In 2020,we developed Fully CNC Lifting Liquid Tank Mirror effect EDM,named HQ-U40,the machine which can achieve the optimal surface roughness up to 0.047um;
10)In 2022,we moved into the new a new address located in the high-tech zone and received the title of specialized, refined, and innovative enterprise in Jiangsu Province;

---
