Magnesium Alloy Sheet Az31b, Az61, Az91, Zk60 Az80A Plate Board 0.03 Magnesium Foil

Product Description

Magnesium alloy plate (Casting, rolling, forging)
Product specification:
Casting plate: thickness 5mm -- 105mm, width 10mm -- 2500mm, can be customized for special needs
Rolled plate: thickness 0.03mm -- 5mm, width 10mm -- 2000mm, can be customized for special requirements
Forging plate:thickness 0.02mm -- 5mm, width 10mm -- 1500mm, can be customized for special requirements
Product application: magnesium alloy board is widely used in aerospace, electronics, 3C, chemical industry, etc
Due to the high thermal conductivity and low cutting force of magnesium alloy, the heat dissipation speed in the process of machining is very fast, so the tool life is long and the amount of sticking tool is small, which can reduce the cost of cutting tool and shorten the downtime needed for changing the tool.
Because magnesium is easy to cut, its chip breaking performance is very good, in general, only after a single finishing can achieve the required final surface finish.
The process of producing magnesium alloy plate and strip by ingot hot rolling and rolling process is adopted, which is flexible in production and can produce ultra-wide and large-specification magnesium plate and strip to meet the needs of various industries.
Magnesium alloy machined plate, used as vibration parts, its service life is 5 times that of aluminum parts.
Our company produces high quality extrusion or rolling magnesium alloy plates with complete specifications and various brands, such as AZ31B, AZ61, AZ80, AZ91, ZK60, ZK61, WE43, WE94 and so on.
The company has perfect production equipment for magnesium processing such as rolling, slitting and heating, including one set of magnesium alloy hot rolling mill, two sets of magnesium alloy rough temperature rolling mill, two sets of magnesium alloy fine temperature rolling mill, and one set of magnesium alloy rough foil rolling mill. A set of magnesium alloy fine foil rolling mill, a set of sheet type hot rolling mill, and supporting power and inspection auxiliary equipment, can produce magnesium alloy sheet and foil with thickness of 0.002~50mm and width not more than 1100mm. The company also has relatively complete mechanical processing equipment, which can process various magnesium alloy structural parts and stamping parts.
Through talent introduction and unremitting research and development, the company has successfully developed magnesium alloy belt type warm rolling technology (roller temperature control technology, online heating technology, online thermal insulation technology, magnesium alloy warm rolling continuous lubrication technology), which is the first in the industry. The thickness of the magnesium alloy foil produced by the technology can reach 0.01 mm, and the comprehensive yield of the magnesium alloy sheet can be increased from the conventional less than 20% to more than 70%. This processing technology is domestically leading and has reached the international advanced level.

Alloy Designation		Mechanical Properties
New Code	Old Code	Thickness (mm)	Tensile Strength Rm (N/mm²)	Yield Strength Rp0.2 (N/mm²)	Elongation (A%) 50mm
AZ31B		0.3-3.0	260	170	24.0
		3.0-10.0	230	140	18.0
M2M	MB1	0.80-3.00	190	110	6.0
		3.00-5.00	180	100	5.0
		5.00-10.00	170	90	5.0
AZ40M	MB2	0.50-3.00	280	180	17.0
		3.00-5.00	260	160	14.0
AZ41M	MB3	0.80-3.00	290	190	17.0
		3.00-5.00	270	170	14.0
ME20M	MBB	0.80-3.00	250	170	21.0
		3.00-10.00	220	140	15.0

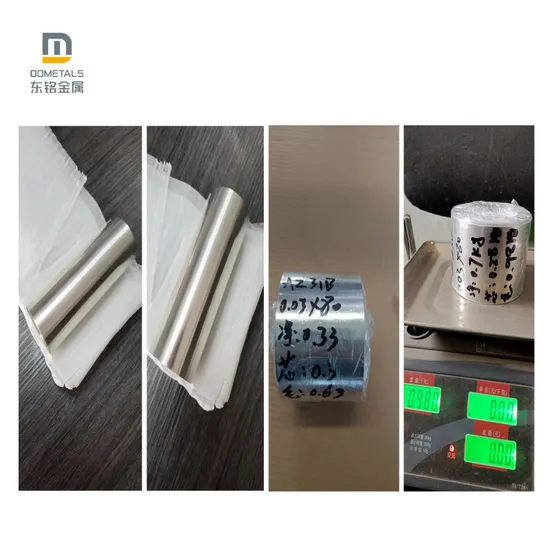

Our magnesium alloy products








Our factory

---
