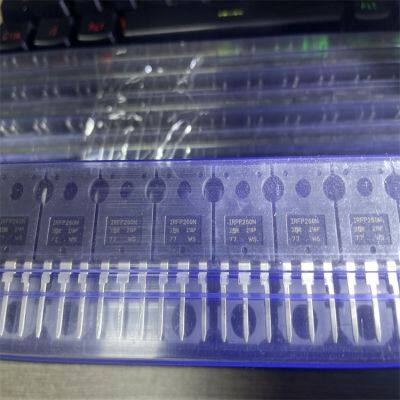

IRFP260NPBF New and Original Electronic Component Integrated Circuit MOSFET

Product Details

Product Description

Product Description
Factory
Mfr. #:
IRFP260NPBF
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 200 V
Id - Continuous Drain Current: 50 A
Rds On - Drain-Source Resistance: 40 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 1.8 V
Qg - Gate Charge: 156 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 300 W
Channel Mode: Enhancement
Packaging: Tube
Brand: Infineon Technologies
Configuration: Single
Fall Time: 48 ns
Forward Transconductance - Min: 27 S
Height: 20.7 mm
Length: 15.87 mm
Product Type: MOSFET
Rise Time: 60 ns
Factory Pack Quantity: 400
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 55 ns
Typical Turn-On Delay Time: 17 ns
Width: 5.31 mm
Part # Aliases: IRFP260NPBF SP001552016
Unit Weight: 0.211644 oz
price: 2.33~4.31

---
