Good Price New Design Needle Punching Machine

Product Description

Good Price New Design Needle Punching Machine
Product Description

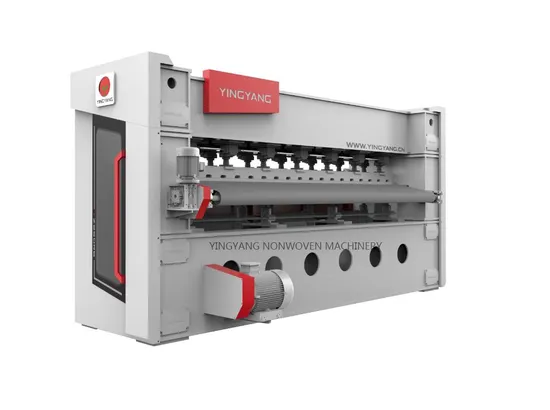

YYGZ- NEEDLE PUNCHING MACHINE
Function
Used for reinforcing and surface finishing of nonwoven fabrics
Product Parameters
Main specification

Main specification

Working width: 2200-8000 mm

Needle density: 5000-8000 n/m

Needle stroke: 25-60 mm

Needle frequency: 1200-1800 s/min

Needling type: double shaft single board or double boards, up stroke or down stroke, tandem needle

Structure
Crank case complete with a horizontal and vertical balance system.
Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems
Magnesium alloy/PU combined needle board locked firmly by air tube; multi random computer needling pattern for needle board.
Chrome plated delivery rollers with carved or patterned surface.
Auto top and bottom dead center controlled stop.
