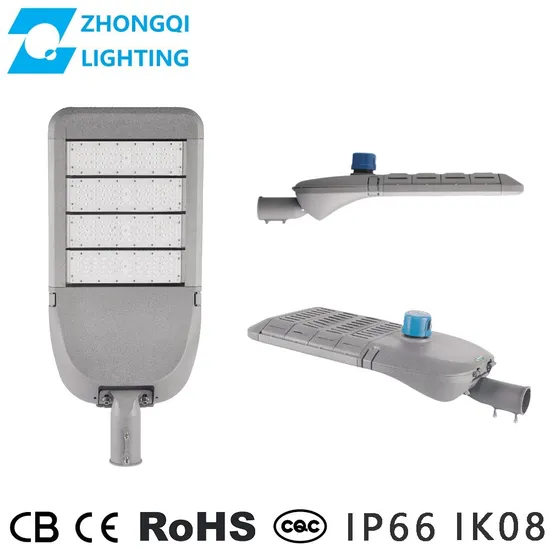

Hot Sale Factory Price LED Outdoor Light Customized LED Street Light Module 240W with Smart LED Driver Motion Sensor IP66 Waterproof CE RoHS Outdoor Lighting

US$45.00-200.00 1 Set (MOQ)

Basic Info.

Model NO.
ZQL-L307D
Lamp Body Material
Aluminum
Power
200W~240W
Application
Square, Highway, Garden, Parking Lot, Street Airport Pathway Ubran
IP Rating
IP66
Certification
CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
Input Voltage
90-305
With Light Source
With Light Source
LED Chips Brand
Epistar
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
8 15 25 30 40 60 90 120 Degree Asymmetric
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector
Driver
Meanwell Inventronics Moso Sosen Do
LED Type
5050 / 3030 /3535 LED Chip
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
3G Vibration / 2g Vibration
Installtion
Horizontal Vertical Adjustable
Service
Dialux Light Simulation
Application 2
Urban Public Lighting Area Lighting Airpot
System Power
50W 60W 100W 120W 150W 200W 250W 300W 360W
Surge Protection
10kv SPD / 20kv SPD Surge Protection Projector
Transport Package
Carton
Specification
810*350*135mm
Trademark
ZQ
Origin
China
HS Code
940542900
Production Capacity
2000000

Packaging & Delivery

Package Size
700.00cm * 350.00cm * 150.00cm
Package Gross Weight
15.000kg

Product Description

Product Description
Product Features
L307D for urban and street lighting of high architectural value
High pressure die casting housing, which has advantages of impact resistance and corrosion resistance.
Luminous flux can maximum 160 lumen per watt, Different CCT is available on customer request
IP66 / IP68 LED module with high light transmittance lens available: TYPE II, TYPE III, TYPE IV, TYPE V
IP66 driver chamber structure, different configurations can be integrated with IOT Smart System for creating modern Smart Cities
Horizontal and vertical mounting options
Toolless operation design makes fixture easy to install and maintain
Product Parameters
TECHNICAL PARAMETERS
Item name Input voltage Freqency range Power Factor CRI CCT Lifetime Ta
Street light AC90-305V 50/60HZ 0.95 >70 2700-6500K >50000H -25ºC~55ºC
IP Grade IK LPW THD Dimming Color Mounting Pole diameter
IP66 IK08 100-160 ≤20% YES Customized Adjustable 48-60mm
Product Model Power(W) Premium LPW(lm/W) Standard LPW(lm/W) N.W.(kg) G.W.(kg) Product Size(mm) Packaging Size(mm)
ZQL-L307D 50 160 130 4.30 5.00 570*350*135 590x375x165
ZQL-L307D 60 160 130 4.30 5.00 570*350*135 590x375x165
ZQL-L307D 100 160 130 5.15 6.00 650*350*135 670x375x165
ZQL-L307D 120 160 130 5.25 6.10 650*350*135 670x375x165
ZQL-L307D 150 160 130 5.95 7.00 730*350*135 750x375x165
ZQL-L307D 180 160 130 6.10 7.10 730*350*135 750x375x165
ZQL-L307D 200 160 130 6.38 7.58 810*350*135 830x375x165
ZQL-L307D 240 160 130 6.50 7.65 810*350*135 830x375x165
ZQL-L307D 300 160 130 8.60 10.00 890*350*135 910x375x165
Product Details
Product Applications
Company Profile
Packaging & Shipping
FAQ Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
