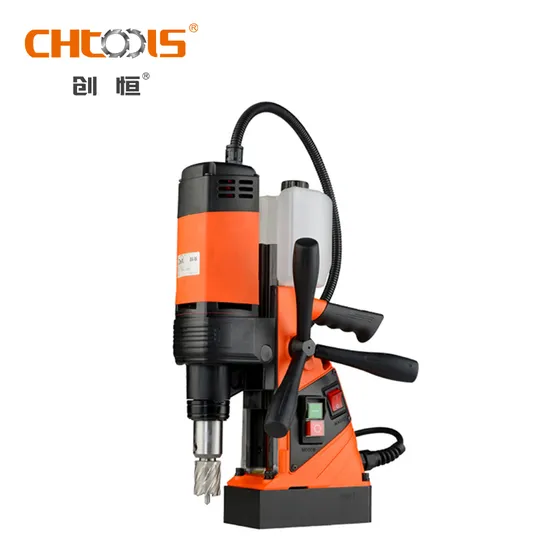

Chtools Drill Press Tool Magnetic Base Drill Machine Tool

Product Description

Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance and all the pipeline engineering.

Product Type	DX-35
Stroke	120mm
Magnetic base bize	167*84*44mm
Input power	1100W
The max cutting depth	50mm (2")
The max cutter capacity diameter	35mm (1-3/8")
Motor can adjust the height to	95mm
The max diameter of twist drill	13mm
The min cutter depth	10mm
Magnetic adhesion	10000N
The type of shank	19.05mm (3/4")
Total weight	11.0kg
Load speed	450rpm
Countersunk drilling	10-35mm

1	Tilt protection design for motor air Inlet avoid liquid or debris falling into the inside of the motor.
2	Two-way sliding rails: special process of Hard wear-resisting, makes the wear-resisting performance increased more than 2 times, Is the guarantee of lower supplies.
	Two-way sliding rails, which make the motor height be adjustable according to the different requirement. Stroke up to 210mm.
	Rail positioning function, which can make the motor stop at any position to prevent self-rig decline and damage cutter.
3	Design of internal self-lubricating function ensure longer life of gear.
4	Automatic internal cooling system, external cooling ring design to prevent water overflow into the gear box, the overall design makes the appearance more beautiful.
5	Design of overall aerial lifting holes and insurance rope holes guarantee double protection for the safety of the aerial personnel and equipment.
6	Design of overall tilt body ensures its overall rigidity, and improve drilling accuracy.
7	Magnetic bottom wear design, which delays the wear of magnet bottom and extend service life.
	Magnetic base with maximum adhesion up to 10000N ensures the safety and reliability during drilling operations.

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool supplier.

---
