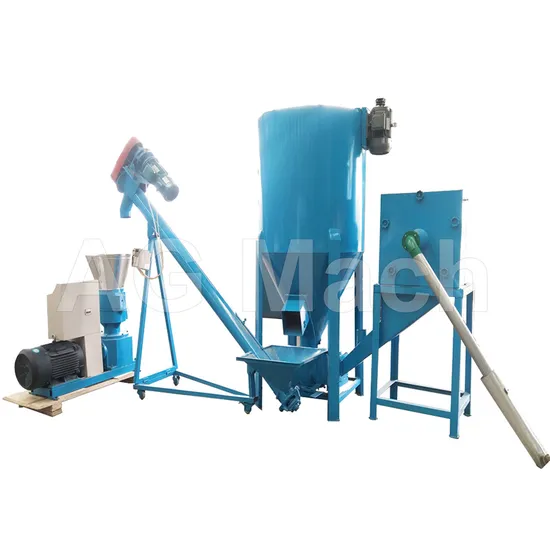

200-300kg/H Simple Animal Feed Pellet Processing Line for Sale

US$2,999.00-5,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
PM-200B
Processing Object
Forage, Straw
Processing Technics
Mixing-before-Crushing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
12 Months
Product Name
Simple Feed Pellet Line
Capacity
200-300kg/H
Voltage
380V 50Hz; Three Phases
Flow Chart
Crushing ---Mixing---Pelletizing
Raw Materials
Concentrated Feed, Forage, Straw, Grass, Corn
Application
Make Feed Pellets for Cow, Chicken, Sheep
Pellet Size
2.5~12 mm Diameter
Key Word 1
Cattle Feed Pellet Making Line
Key Word 2
Animal Feed Pellet Plant
Key Word 3
Poultry Feed Pellet Line
Key Word 4
Pelletizer Machine for Animal Feeds
Key Word 5
Animal Feed Processing Machine
Transport Package
Wooden Case
Trademark
AG Mach
Origin
Henan, China

Product Description

200-300kg/h Simple Animal Feed Pellet Processing Line For Sale
Product Description
* Simple structure, wide applicability, small floor space, low noise.* Powder feed, do not add water or little water granulation can be carried out. The moisture content of pellets smaller, more conducive to storage.* Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals.* The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results.* Be suitable for various materials, suppression effect can be guaranteed.
Product Parameters
No Product Name Model Q'ty Specification
1 Hammer Mill 9FH-420 1 set
1) Power: 7.5KW
2) 16pcs carbon steel hammers
3) Cyclone separator
4) Dimension: 1.1*0.55*0.85m
5) Weight: 350kg
2 Feed Mixer FH-500 1 set 1) Power: 3KW
2) Volume: 250-500kg/batch
3) Speed: 10-15 mins
4) Dimension: 2.4*1.68*1.05m
5) Weight: 260kg
3 Screw Conveyor LS-200 1 set 1) Power: 1.5KW
2) Screw diameter: 220mm
3) Screw length: 3m
4) frequency speed control
4 Feed Pellet Machine PM-200B 1 set 1) Power: 7.5KW
2) Capacity: 200-300kg/h
3) Dimension: 1*0.43*0.95m
4) Weight: 270kg
5 Controller Box BK-1 1 set 1) 380V; 50Hz; Three Phases
2) Control all the above machines.

Detailed Photos
1. Wood crusher machine could process the wood materials, argo waste and tree branches into sawdust. It's necessary to use a wood crusher if your raw material is raw wood (tree branch, tree root and etc.)
2. 9FH series wood crusher can process raw wood with size less than 200mm (diameter) and moisture below 30%. After crushed, the output size can reach diameter 1~10mm.
3. Wood Crusher is made of cutting device, crushing device, air blower and cyclone separator.
4. The wood material are cut into small pieces through the cutting device and sent into the second device for further crushing. The final sawdust will be sent to the gathering place by air blower.
Feed Mixer
* The materials mixing structure: with the whirling of the thruster, the materials will be transferred into the material pipeline by the B hammer room by force.
* There, the materials will be lifted to the top of the room and be totally mixed up and down and spinned from left to right via the air. Therefore, the materials can be evenly mixed which is quite ideal.
Screw conveyors are used to convey particle materials such as sawdust, rice hull, pulverized straw,bulk solids or sludge both on horizontal and high inclination, and are designed to provide an enclosed method of transferring materials from one point to another.
It is consisting of a screw inside a hollow pipe,contained within a tube and it is turned with the help of a motor in order to deliver material from one end of the conveyor to the other. We also add the magnetic part on this machine which can get rid of the metal thing in the raw material.

1) Our feed pellet machine can produce animal feedstuff pellet for animal/poultry like chicken, pig, cattle, sheep for They are widely used in feed factories, breed aquatics factories, organic fertilizer factories.
2) Raw material: rice husk, straw, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials.
3) Moisture of raw materials is less than the national standard of 13%. If not, the raw material must be dried. The size of raw materials should be less than 5mm, if not; the raw material must be crushed.
Raw Materials
Suitable for processing different kinds of raw materials:1. Cereals: soybean, maize,corn, grain, sorghum, corn flour, wheat flour, crop stalks (corn stalk, sorghum stalk, cotton, rape stalk, peanut seedling, sunflower stalk), chaff, grasses, shrubs.2. Coarse fiber: wheat bran, corn stalk, soybean meal, grass meal, rice husk, grass, groundnut shell, cottonseed hull.3. Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin.
Final Products
Final different size feed pellet:1. Diameter of final feed pellets: 3mm. 4mm, 5mm. 6mm, 8mm, 10mm, 12mm etc.
2. Length of feed pellet: Adjustable.Application:
What kind of Animal feed pellets are suitable for?
Color Selection
Different Output
500kg/h Capacity:
1000kg/h Capacity:
