Streetlight 100W, LED, 100V-220VAC, 6500K, IP66, Wide Beam Lamp, Street Flood Lighting

Product Description

LCD FK series Floodlight is Matel halide halogen light fixture replacement for industrial, Marine, car parking, warehouse, street, billboard, building and security lighting. Its features with seven lumen packages, about thirty different optic beam angles optional, and rugged die-cast Aluminum alloy construction team with the LCD Floodlight's IP66 IP67 IP68-rated versatile design, it's the ideal and perfect solution for any outdoor lighting solutions or accent lighting application. Wide range of brightness levels accommodates any project Optional beam angles for optimum results, 110°-120°standard Corrosion-resistant die-cast aluminum alloy housing for optimum cooling and thermal management Easy installation with standard bracket and optional 30-65 mm pole mount adapter. Such as LCD Commercial Floodlight • 100W • 4000K:100W LED floodlight for warehouse in EU Mains operated commercial grade outdoor LED floodlight.Ideal for illuminating large areas such as company car parks, industrial grounds or up-lighting buildings.Fully IP66 rated high powered floodlight constructed from die-cast aluminum, Polycarbonate and tempered glass front.Fitted with a high quality IP67 rated driver.
Product description
Efficiency and versatility for indoor site and outdoor street roadway area lighting

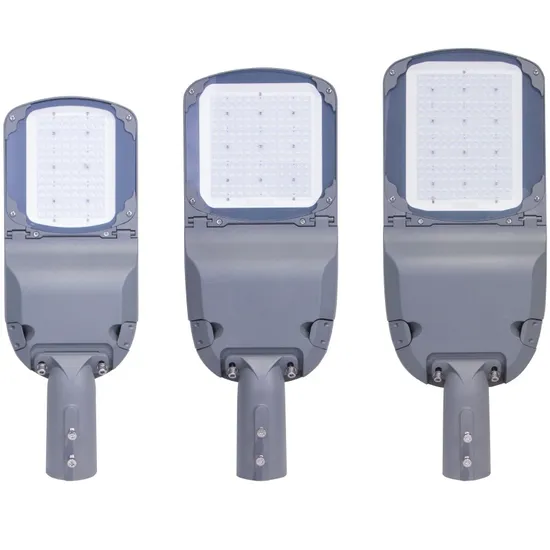

With multiple combinations of lumen packages and light distributions, LCD-ST-G6 series street light is the ideal lighting fixture to provide an efficient multi-purpose lighting solution for street, working site and industrial environments.
Available in 5 sizes housing, this compact luminaire perfectly integrates environments to provide the exact and brightness lighting requirements for the space to be lit. Delivered with different mounting way: bracket, pole and also available with a post-top fixation, it can be adjusted on-site for a precise optical control.
It is perfect for replacing fixtures with traditional Halogen or discharge lamps from 250 to 1000W.
LCD-ST-G6 series provides a bright white light for excellent visibility and colour perception, delivering value beyond energy savings.
Its robust design, with a high IP rating, guarantees performance for 5-7 years to come, even in the harshest conditions.
street
High way
Road way
Industrial working site
CAR PARKS
LARGE AREAS
INDUSTRIAL HALLS & WAREHOUSES
SPORT FACILITIES
50W is 7250 Lumens
100W is 14500 Lumens
150W is 21,750 Lumens
200W is 29,800 Lumens
300W is 43,500 Lumens
>50,000 Hour LEDs chip
Housing Materials: Aluminum alloy
IP Rating: IP65 IP66 IP67 IP68 Outdoor Rated
Lens: Acrylic Diffuser for optimal light performance Certifications: CE, RoHS, SAA, TUV, DLC input voltage 100-277VAC / 50/60Hz or 12-24VDC on requests Available in CCT 2700K-6500K colors Instant start, NO flickering, NO humming Warranty: 5 Years
BRIGHT LIGHT -50W 80W 100W 150W 180W 200W 250W 300W Watt has up to 43,550 Lumens and can replace a 250-1500watt HPS/HID/HALIDE lights, 3000W incandescent or 1000W CFL. 4000K light color ensures a bright clear light. 4000K Light ensures a Bright White light without being harsh. Premium diffuser ensures a nice distribution. >50,000 hours LEDs saves having to replace bulbs or free maintenance. BETTER DESIGN - Uses LUXEON or Cree LED chips SMD3030 Technology to obtain up to 150 lumens per watt and Chips have a 70-80 plus CRI Rating for clear colors. Light has a wide 120-150 degree beam angle projection for wide even light. . Meanwell or Xitanium Driver for premium performance. Fixture is designed for better cooling with separated LED driver compartment and aluminum Heat Sink for long life performance PHOTOCELL INCLUDED AND EASY ADJUSTABLE MOUNT- Unit on requests also has photocell for dusk to dawn usage. Can be removed if not needed. Unit comes with an adjustable slip mount designed to fit on standard circular poles. Inner diameter is 2-3/8 inches, so pole can be 2 - 2.4inches. With slip mount the LED Parking Lot light can be angled up or down depending on if you are mounting vertical or horizontal. The most versatile mount option. BUILT TO LAST - 100,000 LEDs chip saves having to replace bulbs and free maintenance- Aluminum alloy Housing with high tech Heat Sink housing construction design. Better Heat dissipation ensures longer LEDs chip life and safety. IP65 IP66 IP67 IP68 Waterproof and dust proof for all bad weather or wet conditions. All backed by a 5-10 year warranty. CERTIFIED - CE, RoHs, TUV, SAA, ETL Listed and DLC verified on requests for safety and rebate eligibility. All CE RoHs TUV SAA ETL Certified products ensure better quality, safety and reliability. DLC is the Design Lights Consortium for independent verification. They have certified the light at 145 Lumens per watt,
Key Features and benefits Very bright and comfortable light 60%-80% energy saving than conventional light source, save a lot of electricity bill High CRI, makes all the goods looks more clean and beautiful No maintenance trouble Consists of LED engine + LED Driver + spigot kit Easy installation Rated IP 65 / IP66 / IP67 / IP68 The power supply is disengaged when opening the luminaire The luminaire housing is manufactured of marine grade aluminium Designed for LED light sources between 80W and 350W The power factor is rated at ≥0.97 and high lumen output up to 150lumen/w
Mechanics

Materials and finishing	Housing - Aluminium Alloy Protector - High-impact clear glass (IK 08) or and polycarbonate lens
Coating	Black and RAL colours on request
Installation	Bottom-entry mounting spigot™ kit
Fixing	ø60-65 mm Fixing holes or ¢ 40mm on requests
Dimensions (LxWxH)	Maxi - 651 x 307 x 117 mm Mid 3- 489 x 307 x 117 mm Mid 2- 378 x 291 x 117 mm Mid 1 - 317 x 291 x 117 mm Mini - 331 x 205 x 117 mm
Weight (with gear)	Maxi - 10.3 kg Mini - 4.5kg
Access	Yes
Aerodynamic resistance (CxS):	Maxi - 0.027m2 Midi - 0.015m2

Electrical Characteristics

Line Voltage	220VAC
Mains voltage Tolerance (AC)	85-265V
Line frequency	50/60Hz
Electrical Safety Class (IEC)	Class I
Surge protection	Yes - 3-4KV (10kV/10kA on requests)
Lighting control	-on requuests below - Incorporated downward facing daylight switch - Pre-programmable stand-alone dimming - Solar version for Midi is available

Power supply

Power Factor	≥0.97
Removable	Yes
Thermal Safety	Yes

Environment

Storage temperature	-40< T < 85
Enclosure Tightness	IP65 IP 66 IP67 IP68
Enclosure Mechanical Withstand Impact	IK 08
Enclosure Mechanical Withstand Vibrations	Modified IEC 60068-2-6

Application

• Façade lighting	• Area lighting
• Security lighting	• General floodlighting
• Car parking lighting	• General street lighting

Products Dimensions in MM
PHOTOMETRIC DIAGRAMS
Installation
PLC dimmer master controler
FAQ
1. What 's your payment method?
In general,we use Paypal and Western Union for the total order less than US$ 500 in order to reduce the extra fee, Bank Tranfer payment can be accepted for large order too.

2. How long will it take to execute my order ?
This depends on the order quantity.Our nornal delivery time is 5-7 working days.

3. How much will the shipping charges be ?
This will depend on the size of your shipment and the method of shipping.Whe inquiriedabout shipping charges,we hope that you let us know the detailed information such as the post code and quantity ,your favorable method of shipping (by air or by sea ) and your designated port or airport.

4. Do you provide samples ?
Yes ,we can provide samples of all the items listed.In general of facture rule, the sample cost and shipping cost will be in buyer side.We can send the sample by DHL,FEDEX,EMS and UPS .

5. Do you have products in stock?
For most common items we have stock but we could not reserve all the items in stock.Ifthere is any in stock,we will inform you with details.

6. What the warranty term for your products?
All of our products have at least one year warranty in normal use. Please provide or video ia any quality problem during this period.We will replace a new one to you in thenext order.

7. Can I visit you?
Sure, please let us know if you wanna visit our factory ,we will arrange it for you.

8. Do I need to send the defective products back to you for warranty.
No,you don't need to send it back for warranty for the defective products.If any damage happens not caused by misure or vandalism,then we 'll send you a new one.
Features
Streamline shape, back self-cleaning
No tool to open the electric box, open the cover and cut off the power
Hidden respirator, equilibrium pressure
0-90 degree adjustable tailstock
Evenly spread the LED, and the heat dissipation is uniform
Nano reflector, repair light type, improve light efficiency
