Wood Chipper Sieve Wood Chips Sieve for Drum Wood Chipper

Product Description

WOOD CHIPPER SPARE PARTS AND ACCESSORIES
WOOD CHIPPER KNIVES
1. Knives type:
Fly knives for drum wood chipper
Bed knives for drum wood chipper
Cutting knives for disc wood chipper
2. Material: 9CrSi, 6CrW2Si, Cr12MoV, H13, etc.
3. Hardness: 55-58 HRC
4. Application: For wood chipper BX213, BX215, BX216, BX218, BX218D, BX2110, BX2113, BX2116, BX1710, BX1216 etc.
5. Dimensions: Standard and customized
WOOD CHIPPER KNIFE CLAMP PLATE
1. Knife clamp plate type:
Fly knife clamp plate for drum wood chipper
Bed knife clamp plate for drum wood chipper
Fly knife clamp plate for disc wood chipper
2. Material: Forging alloy steel
3. Tensile strength: > 480MPa
4. Application: For wood chipper BX213, BX215, BX216, BX218, BX218D, BX2110, BX2113, BX2116, BX1710, BX1216 etc.
5. Dimensions: Standard and customized
WOOD CHIPPER FEED ROLLER
1. Teeth feed rollers for drum wood chipper.
2. Material: Casting alloy steel
3. Advantage: Wear-Resistant
4. Application: For wood chipper BX213, BX215, BX216, BX218, BX218D, BX2110, BX2113, BX2116 etc.
5. Dimensions: Standard and customized
WOOD CHIPPER BEARING HOUSE
1. Bearing house for drum wood chipper and disc wood chipper.
2. Material: Casting alloy steel
3. Tensile strength: > 480MPa
4. Application: For wood chipper BX213, BX215, BX216, BX218, BX218D, BX2110, BX2113, BX2116, BX1710, BX1216 etc.
5. Dimensions: Standard and customized
SHREDDER BLADE / KNIFE
1. Knives type:
Fly knives for biomass shredder
Fly knives for single shaft shredder
Hammer blades for biomass crusher
2. Material: Cr12MOV,SKD-11,D2 etc.
3. Hardness: 58-60 HRC
4. Advantage: Wear-Resistant
5. Dimensions: Standard and customized
WOOD LOGS CHAIN PLATE CONVEYOR BELT
1. Conveyor type: Heavy duty chain plate conveyor
2. Application: For transporting wood logs, waste wood, stones, metal, other hard blocks.
3. Material: High strength manganese steel
4. Hardness: 58-60 HRC
5. Advantage: Wear-Resistant
6. Plate thickness: from 0.8mm to 6mm for choice.
7. Width: 200mm - 4000mm
8. Length: Customized as the use condition.
KNIFE ROTOR / KNIFE DRUM FOR DRUM CHIPPER AND SHREDDER
1. Knife rotor / Knife drum:
Knife drum / rotor for drum wood chipper
Knife drum / rotor for biomass crusher
Knife drum / rotor for shredder
2. Knives qty.:
2-8 knives for drum wood chipper
16-200 hammer knives for shredder
3.Shaft tensile strength: >750MPa
4. Advantage: Wear-Resistant
5. Dimensions: Standard and customized
OTHER IMPORTANT SPARE PARTS OF WOOD CHIPPER
1. Chain sprocket for wood chipper feed roller and conveyors.

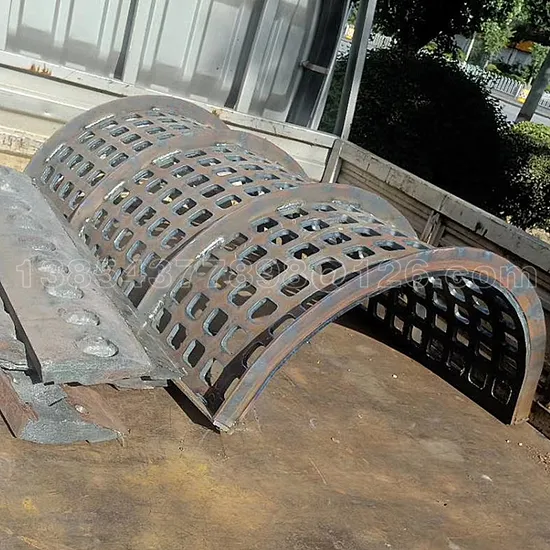

2. Wood chipper screen mesh.
3. Wood chipper bottom comb plate.
4. Hydraulic pump for wood chipper.
5. Wood chipper bed knife seat.
6. Shaft locking unit for wood chipper feed roller and knife rotor.
7. Wood chipper gear reducer / gear box.
8. Wood chipper V-belt pulley.
9. Bearings and locker for feed roller and main shaft.
10. Rubber conveyor belt for infeed and outfeed of wood chipper.

OEM & CUSTOMIZATION
We can also make special parts as customer's request.
Just send us drawings or accurate dimensions when you need a special parts or accessories. We will provide the best offer.

---
