Best Price Bricks Making Machinery Shandong Huatong Brand

Product Description

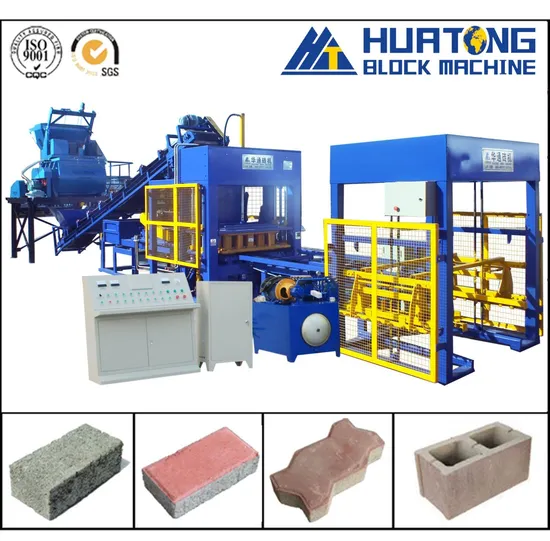

QT5-15 fully autoamtic brick making machine
Product Description
1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Concrete feeder adopts Orienting Way Operation that will decrease the friction with mould and realize perfect concrete feeding..
2.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.
3.Moulding is by table vibration and hydraulic pressure.Wet blocks made by our machine has good density.Solid blocks can be taken off pallet and save pallet cost.
4.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.

5.The Electric Control System adopts Siemens PLC,Omron proximity sensors.
Product Parameters

Technical Specifications of QT5-15 Automatic Block Making Machine
Standard	JC/T920-2003
Vibration Frenquency	4500 r/min
Vibration Pressure	70KN
Motors Specification	Vibration Motor(kw)	5.5x2
	Hydraulic Motor(kw)	18.5
	Concrete Feeder Motor(kw)	4.0
	Belt Conveyor (kw)	2.2
	Stacker Motor(kw)	1.5
	Wet Block Conveyor Motor (kw)	1.5
Production/mould	Hollow block (390×190×190mm) 5 Pics/mould
	Hollow block(245×115×90 mm) 16 Pics/mould
	Solid Brick (245×115×53mm) 32 Pics/mould
	Paver brick(200×100×60mm) 18 pieces/mould
Cycle Time	15-25seconds
Production/day(8hours)	Hollow block(390×190×190 mm) 5800-6300 Pics
	Hollow block (245×115×90 mm) 18500-20000Pics
	Solid brick (240×115×53mm) 45000-57000Pics
	Paver brick (200×100×60 mm) 21000-23000Pics
Motor Power	38.7KW
Water Consumption	5-9T
Number of workers	6-10worker
Space of Ground	3600 square meters
Gross Weight	10T
Machine Dimension	3000x1900x2930mm
Pallet size	1150×580×25mm
Main materials	Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes
Products of machine	Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on.

Production Capacity:

Block Type	Picture	Size(L x W x H)	PCS./Pallet	PCS./Hour	PCS./8 Hours
Hollow Block		400x200x200mm	5	780	6250
Hollow Block		400x150x200mm	6	940	7520
Hourdi Block		530x160x195mm	6	940	7520
Stock Brick		220x105x70mm	24	5400	43200
Paving Block		200x100x60mm	20	3170	25360
Paving Block		225x112.5x60mm	16	2300	18400
We produce mould according to size and shape of client's block.

Block sample:
Company Profile
Shandong Gaotang Huatong Hydraulic Machinery Co., Ltd. is located in Renhe Industrial Park, Gaotang County, Shandong Province. It is one of the large manufacturers specializing in the production of non-burning brick machines.
Our company was founded in 2004. After more than ten years of development, from an annual output of more than a dozen small brick machines to an annual output of hundreds of large brick machine production lines, Huatong now covers an area of 65000 square meters and a construction area of 19000 square meters. It has modern production workshops and office facilities, complete machine tools, heat treatment, rust removal and shot blasting equipment, and welding equipment, and has gathered a large number of senior technical and management personnel. There are 4 senior engineers, there are 8 engineers, more than 60 talents with college education or above, and more than 600 technicians of various types.
Befor sale service:
1,We will supply the block making machine specification.
2,Show how to operate the machine.
3,Could supply the block samples disign drawing.
4,Tell our customer the international business operation procedure.
5,24h E-mail and call service.
Packaging & Shipping
After Sales Service

1,Our technician is available to overseas service,guide installation and help training the workers.
2,24h E-mail and call service.
3,One year guarantee time.
Different countries customers work site:
ISO certificate:
Specifications of JS500 Concrete Mixer:

Charging Capacity (L)		800	Discharging Capacity(L)	500
Maximum Production(m3/h)		25	Aggregate Maxi Diameter(mm)	80mm
Mixing Blade	Speed(r/min)	35	Mixing Motor(kw)	18.5
	Quantity	27	Hoist Motor(kw)	5.5
Water Pump Motor(kw)		0.75	Discharging Mode	Manual/ Pneumatic
Discharging Height(m)		1.5/2.7/3.8	Weight (kg)	4000
Transport Dimension		3030x2300x2680	Working Dimension (mm)	4486x3030x5280

We warmly welcome your enquiry,asking any questions,we will do our best to buy the best quality machine with lower price.

---
