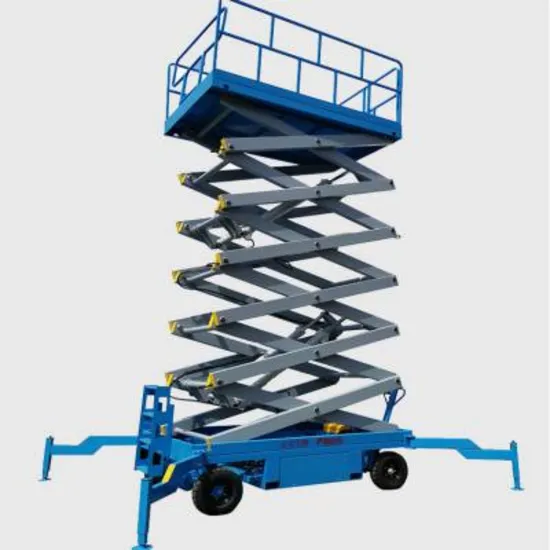

6-14 Meters Hand-Pushed Hydraulic Lifting Platform

Product Description

Product Parameter:

name		Model number		Counterto p mm	Raise d m	Load kg	Overall dimensions mm	Weight kg	Price
Lifting work platform		SXSTJC0.3-18		3070 * 1600	18	300	3321 * 1810 * 2080	About 4100
Material and configuration
Seria l numbe r	Name		Materials
1	Countertop		3mm plate bent
2	Cut the fork support		160*100*5.75mm Q345
3	Chassis		160*80*5.75mm Q345
4	Rail		4.5mm channel steel rail, the use of nylon slide wheel guide rail, large contact surface, stable lifting, small shaking.
5	Oil Cylinder		HSG90/70 4 PCS; Seal ring, durable and non-leaking.
6	Hydraulic tubing		2-10-53MPa double steel mesh high pressure tubing
7	Pumping station		Special hydraulic pump station for Ketai lifting operation platform. Install emergency descent valve, the platform can be manually controlled descent; Built-in relief valve, can prevent the upward movement of the system pressure is too high, play a protective function
8	Power and voltage		3kw/380V/50hz
9	Tires		700-9 pneumatic tires 4 pairs
10	Outrigger legs		160*80*3.75mm Q235
11	D istribut i on box		Some accessories Delixi brand
12	Control form		Up and down controls. The control part is equipped with safety emergency stop to maximize property and personal safety. 36V safety control voltage is used in each operation part
13	Stroke switch		Shanghai ASEAN Brand
14	Shaft pin		45# round steel, galvanized. SF-2 oil-free self-lubricating bearings are installed between each shaft pin.
15	Hydraulic		Winter 32# Summer 46#

Other Related Product Models:

Model number	Table sizemm	L0adkg	Platform heightm	Boundary Dimensionmm(LWH)	Dead Load (kg)
SXSTJC0.5-4	2100*830	500	4	2250*950*1250	800
SXSTJC0.5-6	2100*830	500	6	2250*950*1260	880
SXSTJC0.5-7	2100*830	500	6.8	2250*950*1260	970
SXSTJC0.5-8	2100*930	500	8	2250*1060*1380	1050
SXSTJC0.5-9	2100*930	500	9	2250*1060*1500	1165
SXSTJC0.5-10	2100*1230	500	10	2250*1350*1530	1360
SXSTJC0.3-11	2100*1230	300	11	2250*1350*1650	1400
SXSTJC0.5-12	2550*1530	500	12	2796*1730*1810	2260
SXSTJC0.5-14	2812*1530	500	14	3067*1730*1810	2486
SXSTJC0.3-16	2812*1600	300	16	3067*1810*2080	3063
SXSTJC0.3-18	3070*1600	300	18	3321*1810*2080	3900

Company Profle:
Shandong Shuxin Construction Machinery Equipment Co., Ltd.Headquartered in the bustling city of Jinan, Shandong, Shandong Shuxin Construction Machinery Equipment Co., Ltd. proudly serves clients nationwide. With 8 illustrious years of experience in the construction machinery sector, we specialize in offering a wide spectrum of cutting-edge construction machinery and equipment. Our flagship products include innovative mobile elevating work platforms and advanced telescopic handlers. Our services extend beyond sales to encompass unparalleled after-sales support, a comprehensive selection of spare parts, expert operator training, and the sale and refurbishment of pre-owned machinery.Our prestigious clientele includes Fortune 500 companies, prominent state-owned enterprises, and numerous publicly listed firms, reflecting our stellar reputation and industry-wide acclaim.
Our main business areas include:
Mobile Elevating Work PlatformsOur extensive range features over 100 types of platforms, including scissor lifts, articulated boom lifts, telescopic boom lifts, spider lifts, and glass vacuum lifters. With working heights from 4 to 70 meters, we offer both electric and diesel engine models. Our electric lifts are prized for their low noise, remarkable energy efficiency, smooth operation, and long-lasting performance. Conversely, our diesel engine lifts are known for their powerful performance, compact design, exceptional off-road capabilities, and proficiency in navigating challenging terrains.
TelehandlerWe offer a versatile array of telescopic handlers in fixed and rotating types, with over 40 models available. Highlights include fixed type 5-ton 17-meter, 3.5-ton 14-meter, 3.5-ton 7-meter, and rotating type 7-ton 25-meter handlers. These machines can be outfitted with a variety of attachments such as buckets, forks, aerial work platforms, hooks, and tire clamps, making them highly adaptable to diverse operational needs. Telescopic handlers shine in stacking goods over obstacles and performing multiple tasks with ease, making them essential for construction sites, warehouses, docks, and other demanding environments.
Other Construction Machinery ProductsBeyond the categories mentioned, we also provide a broad spectrum of construction machinery, including excavators, truck cranes, loaders, and forklifts.
All our products carry CE and ISO certifications, ensuring top-notch quality and safety. We are devoted to delivering comprehensive solutions for secure aerial work, supported by our round-the-clock professional service.
For more detailed product information, please visit our homepage.
After Sales Service:
Product advantage:
1. **Easy to Operate**: Our hydraulic manual lift platforms are crafted with intuitive manual or electric control systems, ensuring exceptional user-friendliness and necessitating minimal training, so anyone can operate them with ease.
2. **Flexible Mobility**: Equipped with durable wheels, these platforms glide effortlessly across diverse work areas, making them ideal for warehouses, workshops, malls, and an array of other environments.
3. **High Safety**: Meticulously designed with multiple safety features, including robust guardrails, emergency stop buttons, and advanced fall prevention systems, our platforms ensure operators remain safe at all times.
4. **Cost-Effective**: Compared to larger electric or hydraulic lifts, our manual platforms offer a far more economical solution, significantly cutting down on maintenance costs and providing an affordable choice for numerous applications.
5. **Strong Adaptability**: Perfect for a wide variety of indoor tasks such as material handling, loading and unloading goods, and equipment maintenance, our manual lifts are versatile and essential for a diverse range of lifting needs.
6. **Energy Efficient and Eco-Friendly**: Engineered with energy efficiency at the forefront, our manual lifts consume minimal energy, promoting environmental sustainability and meeting the stringent environmental standards of various locations.
Packaging & Shipping:
We take immense pride in delivering our world-class services across the globe, ensuring that excellence reaches you, no matter where you are.

Our transportation plan:
1,When transporting scissor lifts and smaller equipment, we generally use container transportation in order to save costs.
2,When the quantity is large or the volume of the product is large, we recommend the use of RO-ro shipping machine transportation.

---
