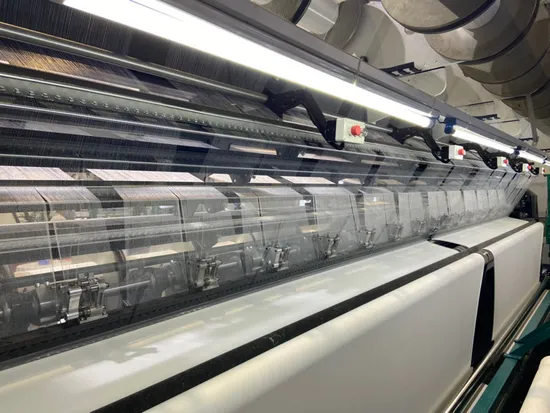

Sally Tricot Warp Knitting Machine

Product Description

Application:
To produce toys plush, super soft sortplush, coat fbics, deorative fabics, sportswear,shoes fabrics etc.
Characteristic:
This device uses a crank linkage, and equipped with the oil line forced pressure lubricationsystem and oil temperature control system. Electronic let-off, electronic traction andautomatic technology are used to ensure the efficient production and simple operation ofthe machine. Easy operation and high efficiency tricot machine with touch screen interface are mainly used in apparel and upholstery fields for the production of stretch and non-stretch fabric, e.g. sportswear, lingerie, tulle, velvet, velour, super plush, automobile interiors, etc. Tricot machine electric controlled system makes the operation efficient and accurate. By the application of a brushing device that can create the loop on the fabric from the warp-knitted terry towel machine.
Tricot machine application of carbon bar can reduce the weight of the material and prevent the deformation of the knitting elements, which finally increase the machine production. Fine gauge up to E32 with the mono yarn 12D make very light and soft tulle. Tricot machine EL devices make patterns changing extremely convenient and faster.
We make a tricot machine from 2bar to 4bar with a wide width range from 42 inches to 290 inches. The concept of our tricot machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via the internet for better production management.

FABRIC SPECIFICATIONS
Working width	130",186",218",268",280"
Bar	2,3,4
Gauge	E24,E28,E32
BARS/KNITTING ELEMENTS
Individual needle bar	carbon bar	standard
Tongue bar	carbon bar	standard
Sinker bar	carbon bar	standard
Ground bar	carbon bar	standard
Jacquard bar	pizeo jacquard control system
WARP BEAM SUPPORT
Free standing	application 30"/40"beams
MACHINE DRIVE AND CONTRO
Main motor	invertor regulated control	standard
WARP LET-OFF DEVICE
EBC	electric control	standard
CLOTH TAKE-UP DEVICE
EAC	electric control	standard
BATCHING DEVICE
Electric	integrated centrally driven	standard
Brushing device for terry towel		optional
Batching diameter
PATTERN DRIVE
Pattern disc		standard
EL	via electric motor	optional
MONITORING&SOFTWARE
HMI	monitoring and reporting via display	standard
Cotex Suite		optional
OIL SUPPLY
Heater exchanger	heating and cooling	optional
SAFETY
Light curtain	depending on country of delivery	optional

---
