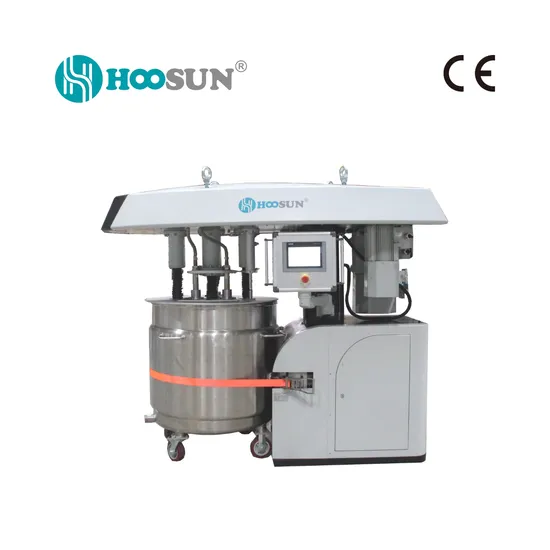

Lab Nano Basket Mill for Precision Grinding of Inks, Paints, and Pigments

Product Description

Key Features:
Unique Dispersion System: Our basket mill features a unique dispersion grinding system with separate dispersion drives in the grinding chamber, offering increased product preparation efficiency. Intelligent Operation: Equipped with an intelligent lifting and lowering system, it allows for easy automation and intelligent production processes. Versatile Application: Capable of handling a wide range of product viscosities and can be applied to various drum sizes, making it highly adaptable. Leak-Free Design: No risk of mechanical leakage, with no pumps or pipework required. Technical Specifications:
Fineness: 50 - 150nm Zirconia Bead Diameter: 0.03 - 0.6mm Optional Materials: Tungsten carbide, Polyurethane, Zirconia, Silicon carbide, Silicon nitride Application Areas:
Paintings Coatings Dyes Pigments Nano new materials MLCC (Multilayer Ceramic Capacitors) Lithium batteries Silicon carbon cathode electrodes Alumina Ceramic ink Additional Benefits:
On-site Installation: We offer installation on-site and lifetime maintenance to ensure your equipment operates at peak efficiency. Warranty: 1-year warranty for peace of mind. Electric Drive: The mill operates with an electric drive, ensuring efficient and reliable performance. Fine Grinding: Designed as a fine grinding machine, it offers superior precision and quality in grinding applications. Our Hoosun basket mill is the perfect solution for industries requiring high-precision and efficient grinding of paints, coatings, and pigments. Its advanced technology and robust construction ensure superior performance and durability, making it the top choice for professional applications.
Technical Parameter

Model	Lift (mm)	Weight (kg)	Motor Power (grinding)	Motor Power (stirring)	Batch Capacity
Lab-SMB	/	300	2.2KW	0.75kw	6-10L
SMB 200	800	1100	7.5KW	1.5kw	50 - 200L
SMB 400	900	2200	15KW	4kw	200 - 400L
SMB 500	1300	2800	22KW	7.5kw	300 - 1500L
SMB 3000	1500	3200	37KW	15kw	1500-3000L
SMB 6000	1800	5200	55KW	37kw	2000 - 6000L

Company Profile

Exhibition
CE & ISO certification
Signing Ceremony & After-sales service
Our Customers

FAQ

---
