Product Description
Product Description

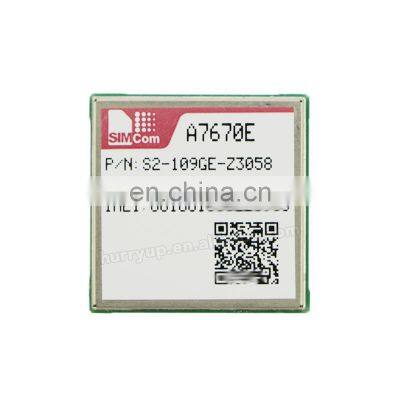

Description SIMCom A7670XThe A7670 series is the LTE Cat 1 module which supportswireless communication modes of LTE-TDD/LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlinkrate and 5Mbps uplink rate.The A7670 series adopts LGA form factor and iscompatible with SIM7000/SIM7070 series(NB/Cat Mmodules), and SIM800A/SIM800F(2G modules), whichenables smooth migration from 2G/NB/Cat M products toLTE Cat 1 products, and greatly facilitates morecompatible product design for the customer needs.The A7670 series supports multiple built-in networkprotocols, supports drivers for main operation systems(USB driver for Windows, Linux and Android etc.) andsoftware function, AT commands are compatible withSIM7500/SIM7600 series modules. Meanwhile the A7670series integrates main industrial standard interfaces, withpowerful expansibility, including abundant interfaces suchas UART, USB, I2C, GPIO, which is suitable for main IOTapplications such as telematics, surveillance devices, POS,industrial routers, and remote diagnostics etc.Product Advantages- Small size LTE Cat 1 module- LGA form factor with abundant interfaces- Suitable for LTE and GSM networks- Abundant software functions: FOTA, LBS, SSL- The form factor of A7670 series are compatible with the SIM7000/SIM7070 seriesProductA7670CA7670EA7670SAForm factorLGALGALGADimensions(mm)24.0*24.0*2.324.0*24.0*2.324.0*24.0*2.3Frequency BandsLTE-FDDB1/B3/B5/B8B1/B3/B5/B7/B8/B20B1/B2/B3/B4/B5/B7/B8/B28/B66LTE-TDDB34/B38/B39/B40/B41GSM900/1800MHz900/1800MHz850/900/1800/1900MHzTemperature GNSS-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃Electrical FeaturesSupply Voltage Range(V)3.4~ 4.23.4~ 4.23.4~ 4.2Power Consumption (mA)LTE3.83.83.8GSM,BS_PA_MFRMS=23.53.53.5Data TransferLTE(Mbps)10(DL)/5(UL)10(DL)/5(UL)10(DL)/5(UL)GPRS/EDGE(Kbps)236.8(DL)/236.8(UL)236.8(DL)/236.8(UL)236.8(DL)/236.8(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNSTLS●●●File System●●●Audio Record/PlayoooTTSoooLBS●●●FOTA●●●Android RILAndroid 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0USB DriverMicrosoft Windows 7/8/10 Linux/AndroidMicrosoft Windows 7/8/10 Linux/AndroidMicrosoft Windows 7/8/10 Linux/AndroidWWAN (RNDIS)●●●ECM●●●Embedded AToooFirmware UpgradeUSB/FOTAUSB/FOTAUSB/FOTAInterfacesSIM Card1.8V/3.0V1.8V/3.0V1.8V/3.0VUART●●●USB●●●PCMoooADC●●●GPIO●●●I2C●●●CertificationCertificationRoHSREACHCCCCTASRRCMobileUnicomTelecomRoHSREACHCE(RED)RoHSREACHRCMCE(RED)OCD(Anatel)FCCWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
