Universal Vertical RAM Milling Machine Xq6432A/Xq6432c

Product Description

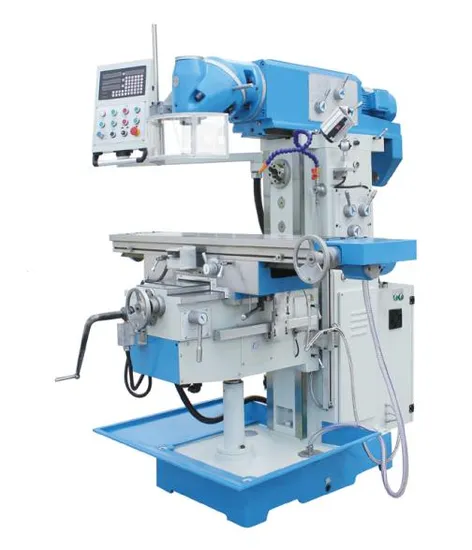

Ram Milling Machine XQ6432A/XQ6432C
DRO is optional accessories.
Selector lever for feed direction.
Selector lever for feed axis.
Rotary table(±45°) is optional accessories.
Table 3 axes are controlled by one servo motor,torque large,energy efficiency, safe and reliable.
Swivel head when horizontal milling.
Specification:

Model No.	XQ6432A	XQ6432C
Item No.
Specifications
Table size	1370x320 mm	1370x320 mm
Table travel(XY/Z)	1100/320/450 mm	1300/320/450 mm
Max.Table travel (XY/Z)	820/300/400 mm	1000/380/400 mm
T-slots(NO.width/pitch)	3/14/80 mm	3/14/80 mm
Spindle
Spindle taper	7:24 ISO40
Arm travel	400 mm	400 mm
Distance between spindle line and table surface	65-465 mm	65-465 mm
Distance between spindle nose and table surface	250-650 mm	250-650 mm
Distance from horizonal spindle center line arm surface	180 mm	180 mm
Spindle speed range	11 steps 45-1660(V) 12 steps 35-1500(H)
Other
Main motor power	2.2 or 3(V) 3H
Cooling pump motor power	40 w
Flow of cooling pump	12 L/m
Overall size	1820x1680x1860 mm	1820x1680x1860 mm
Weight	1900 kg	1950 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
