Gantry machining center refers to the axis of the main axis Z axis and the vertical setting of the working table of the machining center, the overall structure is composed of double columns and top beams to form a portal frame of large machining center machine, and there are beams in the middle of the double columns. It is especially suitable for processing large workpieces and complex workpieces.
| Mechanical specification parameter |
| | units

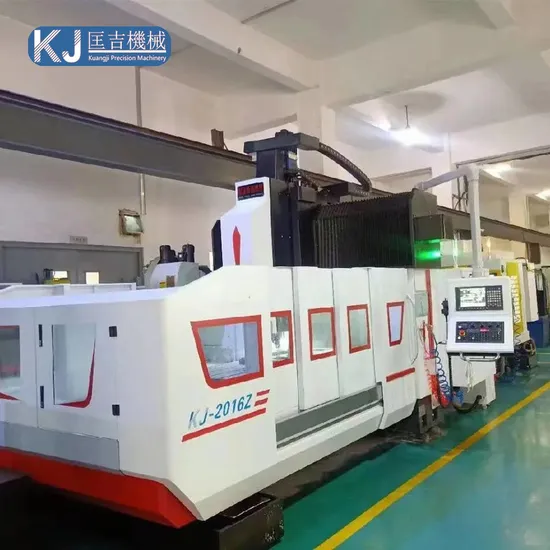

| KJ-2016Z |
| X/Y/Z axis travel | mm | 2100/1630/700 |
| Distance from spindle center to column side | | 310 |
| Distance from spindle nose to work surface | mm | 150-850 |
| workbench | mm | 2200×1400 |
| Maximum load of workbench | T | 4 |
| T-slots (Number - size × spacing) | | 9-22*120 |
| Spindle (Specification - mounting diameter - transmission form) | | Standard: BT50 belt spindle |
| Spindle speed (standard) | rpm | 6000 |
| Gantry width | mm | 1630 |
| Spindle servo power | kw | 15-18.5 |
| Taper of spindle hole/mounting diameter | mm | BT50 |
| X/Y/Z axis ball screw specification | | X:5010 Y:5010 Z:5010 |
| X.Y.Z axis instant fast movement speed | (M/min) | X:18,Y:18,Z:18 |
| X-axis guide specification | | X, 45# roller line rail (6 slider design) |
| Y-axis guide specification | | Y, 45# Roller rail (4 slider design) |
| Z-axis guide specification | | X, 45# Roller line rail (6 slider design) |
| X, Y, Z motor connection mode | | X, Y, Z motor direct drive |
| positional accuracy | mm | ±0.005/300 |
| repeated positioning accuracy | mm | ±0.003/300 |
| Floor area (length × width × height) | mm | 5600×2410×3397.5 |
| machine weight | T | 16.5 |
