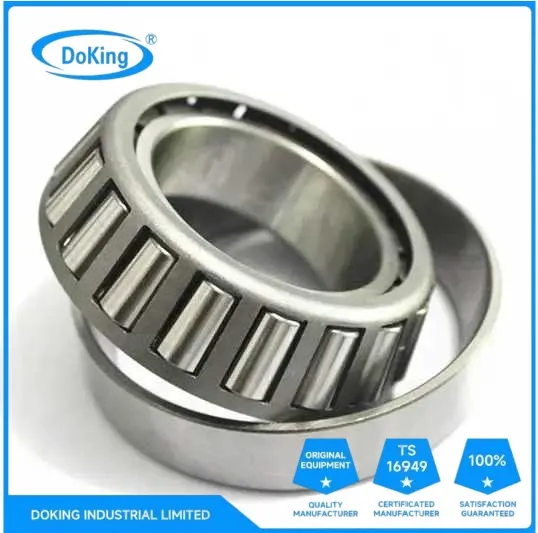

Factory Low Noise Bearing Good Price Lm48548/10 Inch Tapered Roller Bearing

US$1.59-2.20 50 Pieces (MOQ)

Basic Info.

Model NO.
LM48548/10
Stock Qty
Rich /Great Supplying Ability
Size
Standard
Material
Chrome Steel Gcr15
Hardness
59-63 HRC
Tolerance
P0, P2 P4, P5, P6
Brand
Doking
Separated
Separated
After Service
Within 24 Hours Response
Lubrication
Oil or Grease
Application
Industrial Machinery
Bearing Cage
Steel Cage
Sample
Avlilable
Transport Package
Bag+Box+Carton
Specification
standard
Trademark
doking and other
Origin
Hebei, China
HS Code
8482200000
Production Capacity
200000PCS/Mouth

Product Description

PRODUCT DETAILS
Product Name Tapered Roller Bearings
OEM Number LM48548/10
Brand Name Doking or OEM Brand
Cage Steel Cage Brass Cage Nylon Cage
Precision Grade P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9)
Certifications ISO 9001
Package Box,Carton,Wooden Box,Plastic Tube or Per buyers requirement .
MOQ 50PCS
Service OEM
Sample Available
Product Advantage
 1.High load with high end technology and low noise;
2.Long life with high quality;
3.Competitive price and OEM service;
Tapered roller bearing is a common mechanical parts, and its main function is to support and rotate the axis in the machine. The structure of tapered roller bearings is relatively complicated, but its service life is relatively long and can withstand large loads and impact power, so it has been widely used in mechanical manufacturing. MORE PHOTOS
CATALOGUE
Model No. Basic Size Basic load(kN) Limit speed Mass
mm Dynamic Static rpm Kg
Inner ring Outer ring d D T B C R r Cr Cor Grease oil ≈
11590 11520 15.875 42.862 14.288 14.288 9.525 1.5 1.5 17.60 17.60 8500 12000 0.1
LM11749 LM11710 17.462 39.878 13.843 14.605 10.668 1.3 1.3 21.20 20.80 9000 13000 0.081
LM11949 LM11910 19.050 45.237 15.494 16.637 12.065 1.3 1.3 27.50 27.50 8500 12000 0.12
09067 09195 19.050 49.225 18.034 19.050 14.288 1.3 1.3 39.10 40.00 8000 11000 0.18
09074 09196 19.050 49.225 23.020 21.539 17.462 1.5 1.5 39.10 40.00 8000 11000 0.21
A6075 A6157 19.050 39.992 12.014 11.153 9.525 1.0 1.3 14.9 15.7 9500 13000 0.066
09067 09196 19.050 49.225 21.209 19.050 17.462 1.3 1.5 39.10 40.00 8000 11000 0.2
09074 09195 19.050 49.225 19.845 21.539 14.288 1.5 1.3 39.10 40.00 4300 8000 0.19
09074 09194 19.050 49.225 23.020 21.539 17.462 1.5 3.5 37.5 37.0 8500 11000 0.21
12580 12520 20.638 49.225 19.845 19.845 15.875 1.5 1.5 37.5 39.0 8200 11000
M12649 M12610 21.430 50.005 17.526 18.288 13.970 1.3 1.3 36.90 38.00 8000 11000 0.17
LM12749 LM12710 21.986 45.237 15.494 16.637 12.065 1.3 1.3 27.50 31.00 8000 11000 0.12
LM12749 LM12711 21.986 45.974 15.494 16.637 12.065 1.3 1.3 27.50 31.00 8000 11000 0.12
M12648 M12610 22.225 50.005 17.526 18.288 13.970 1.3 1.3 39.1 40.7 8500 11000 0.17
1280 1220 22.225 57.150 22.225 22.225 17.462 0.8 1.6 52.6 55.7 7600 10000
1755 1729 22.225 56.896 19.368 19.837 15.875 1.3 0.8 46.00 43.1 7600 10000
07093 07196 23.812 50.005 13.495 14.260 9.525 1.5 1.0 26.0 27.9 7600 10000
07097 07196 25.000 50.005 13.495 14.260 9.525 1.5 1.0 26.7 28.8 7900 11000 0.146
07100 07204 25.400 51.994 15.011 14.260 12.700 1.5 1.3 26.7 28.8 7900 11000 0.145
1780 1729 25.400 56.896 19.368 19.837 15.875 0.8 1.3 42.5 46.5 7200 9600
L44643 L44610 25.400 50.292 14.224 14.732 10.668 1.3 1.3 26.00 30.00 7500 10000 0.13
M84548 M84510 25.400 57.150 19.431 19.431 14.732 1.5 1.5 39.60 45.00 6700 9000 0.24
15101 15243 25.400 61.912 19.050 20.638 14.288 0.8 2.0 44.6 50.7 6400 8600 0.28
07100 07196 25.400 50.005 13.495 14.260 9.525 1.5 1.0 26.7 28.8 7900 11000 0.12
15101 15245 25.400 62.000 19.050 20.638 14.288 0.8 1.3 48.40 57.00 6000 8000 0.31
15101 15250X 25.400 63.500 20.638 20.638 15.875 0.8 1.5 48.40 57.00 6000 8000 0.34
L44649 L44610 26.988 50.292 14.224 14.732 10.668 3.5 1.3 26.00 30.00 7500 10000 0.11
1988 1922 28.575 57.150 19.845 19.355 15.875 3.5 1.5 47.30 55.00 6700 9000 0.22
02474 02420 28.575 68.262 22.225 22.225 17.462 0.8 1.5 58.30 69.50 5600 7500 0.42
02872 02820 28.575 73.025 22.225 22.225 17.462 0.8 3.2 55.0 65.7 5500 7400
15112 15245 28.575 62.000 19.050 20.638 14.288 3.5 1.3 48.40 57.00 6000 8000 0.28
L45449 L45410 29.000 50.292 14.224 14.732 10.668 3.5 1.3 26.00 32.50 7000 9500 0.11
15116 15245 30.112 62.000 19.050 20.638 14.288 0.1 1.2 44.6 50.7 6400 8600
M86649 M86610 30.162 64.292 21.433 21.433 16.670 1.5 1.5 49.50 61.00 6000 8000 0.33
M88043 M88010 30.162 68.262 22.225 22.225 17.462 2.3 1.5 55.00 69.50 5600 7500 0.41
02475 02420 31.750 68.262 22.225 22.225 17.462 3.6 1.6 51.0 61.1 6000 8000
14125A 14276 31.750 69.012 19.845 19.583 15.875 3.5 1.3 44.5 55.0 5500 7500 0.35
LM67048 LM67010 31.750 59.131 15.875 16.764 11.811 3.6 1.3 34.70 41.50 6300 8500 0.18
2580 2520 31.750 66.421 25.400 25.357 20.638 0.8 3.3 69.30 81.50 5600 7500 0.4
2580 2523 31.750 69.850 23.812 25.357 19.050 0.8 1.3 69.0 81.5 5700 7600 0.45
14125A 14276 31.750 69.012 19.845 19.583 15.875 3.5 1.3 48.5 58.0 5600 7400 0.35
15123 15245 31.750 62.000 18.161 19.050 14.288 4.0 1.3 48.40 57.00 6000 8000 0.24
15126 15245 31.750 62.000 19.050 20.638 14.288 0.8 1.2 44.6 50.7 6400 8600
HM88542 HM88510 31.750 73.025 29.370 27.783 23.020 1.3 3.3 74.3 101.0 5600 7500 0.62
M88048 M88010 33.338 68.262 22.225 22.225 17.462 0.8 1.5 55.00 69.50 5600 7500 0.38
14130 14276 33.338 69.012 19.845 19.583 15.875 3.5 1.3 53.90 67.00 5600 7500 0.35
14136 A 14276 34.925 69.012 26.982 26.721 15.875 0.8 1.3 53.90 67.00 5600 7500 0.33
25877 25821 34.925 73.025 23.812 24.608 19.050 1.5 0.8 72.10 88.00 5300 7000 0.47
LM48548 LM48510 34.925 65.088 18.034 18.288 13.970 3.6 1.3 47.30 57.00 5600 7500 0.25
HM88649 HM88610 34.925 72.233 25.400 25.400 19.842 2.3 2.3 67.10 90.00 5000 6700 0.5
HM89446 HM89410 34.925 76.200 29.370 28.575 23.020 3.5 3.3 78.10 106.00 4800 6300 0.66
L68149 L68110 34.988 59.131 15.875 16.764 11.938 3.5 1.3 33.00 44.00 6000 8000 0.17
L68149 L68111 34.988 59.974 15.875 16.764 11.938 3.5 1.3 33.00 44.00 6000 8000 0.17
LM78349A LM78310A 34.988 61.973 16.700 17.000 13.600 1.5 1.5 37.0 48.0 5900 7900 0.21
HM88648 HM88610 35.717 72.233 25.400 25.400 19.842 3.6 2.4 66.9 87.4 5700 6900
25880 25821 36.487 73.025 23.812 24.608 19.050 1.5 0.8 72.10 88.00 5300 7000 0.46
25880 25820 36.487 73.025 23.812 24.608 19.050 1.5 0.8 72.10 88.00 5300 7000 0.45
2794 2720 36.487 76.200 23.812 25.654 19.050 3.5 3.3 74.80 93.00 5000 6700 0.5
HM89448 HM89410 36.512 76.200 29.370 28.575 23.020 0.8 3.3 78.10 106.00 4800 6300 0.64
HM89449 HM89410 36.512 76.200 29.370 28.575 23.020 3.5 3.3 78.10 106.00 4800 6300 0.64
JL69349 JL69310 38.000 63.000 17.000 17.000 13.500 sp 1.3 43.5 58.2 6000 8000 0.2
LM29748 LM29710 38.100 65.088 18.034 18.288 13.970 sp 1.3 42.9 56.5 5800 7800 0.24
LM29749 LM29710 38.100 65.088 18.034 18.288 13.970 2.3 1.3 42.90 57.0 5600 7500 0.24
LM29749 LM29711 38.100 65.088 19.812 18.288 15.748 2.3 1.3 42.9 57.00 5600 7500 0.25
3490 3420 38.100 79.375 29.370 29.771 23.812 3.5 3.3 91.30 110.00 5000 6700 0.67
418 414 38.100 88.500 26.988 29.083 22.225 3.5 1.5 101.00 114.00 4800 6300 0.83
2788 2720 38.100 76.200 23.812 25.654 19.050 3.5 3.3 74.80 93.00 5000 6700 0.5
16150 16282 38.100 72.000 19.000 20.638 14.237 3.5 1.5 49.50 60.00 5300 7000 0.33
HM801346 HM801310 38.100 82.550 29.370 28.575 23.020 0.8 3.3 85.80 118.00 4500 6000 0.78
25572 25520 38.100 82.931 23.812 25.400 19.050 0.8 0.8 77.2 100.0 4800 6300 0.64
LM300849 LM300811 40.988 67.975 17.500 18.000 13.500 3.6 1.5 44.00 58.50 5300 7000 0.24
LM501349 LM501310 41.275 73.431 19.558 19.812 14.732 3.5 0.8 55.00 69.50 4800 6300 0.33
LM501349 LM501314 41.275 73.431 21.430 19.812 16.604 3.5 0.8 55.00 69.50 4800 6300 0.35
LM501349 LM501311 41.275 73.431 23.012 19.812 18.186 3.5 2.3 55.00 69.50 4800 6300 0.37
M802048 M802011 41.275 82.550 26.543 25.654 20.193 3.5 3.3 73.70 91.50 4500 6000 0.62
18590 18520 41.275 73.025 16.667 17.462 12.700 3.5 1.5 46.80 56.00 5000 6700 0.28
11162 11300 41.275 76.200 18.009 17.384 14.288 1.5 1.5 45.70 56.00 5000 6700 0.34
24780 24720 41.275 76.200 22.225 23.020 17.462 3.5 0.8 68.20 86.50 5000 6700 0.43
HM803146 HM803110 41.275 88.900 30.162 29.370 23.020 3.5 3.3 95.20 127.00 4300 5600 0.9
526 522 41.275 101.600 34.925 36.068 26.988 3.5 3.3 151.00 190.00 3800 5000 1.45
3579 3525 42.862 87.312 30.162 30.886 23.812 3.5 3.3 102.00 132.00 4500 6000 0.8
25577 25520 42.875 82.931 23.812 25.400 19.050 3.5 0.8 80.90 106.00 4500 6000 0.57
25577 25523 42.875 82.931 26.988 25.400 22.225 3.5 2.3 80.90 106.00 4500 6000 0.61
25577 25522 42.875 83.058 23.876 25.400 19.114 3.5 2.0 80.90 106.00 4500 6000 0.57
527 522 44.450 101.600 34.925 36.068 26.988 3.5 3.3 151.00 190.00 3800 5000 1.35
535 532 A 44.450 111.125 38.100 36.957 30.162 3.5 3.3 151.00 190.00 3600 4800 1.9
25580 25520 44.450 82.931 23.812 25.400 19.050 3.5 0.8 80.90 106.00 4500 6000 0.57
25580 25523 44.450 82.931 26.988 25.400 22.225 3.5 2.3 80.90 106.00 4500 6000 0.61
25580 25522 44.450 83.058 23.876 25.400 19.114 3.5 2.0 80.90 106.00 4500 6000 0.57
HM803149 HM803110 44.450 88.900 30.162 29.370 23.020 3.5 3.3 95.20 127.00 4300 5600 0.85
17887 17831 45.230 79.985 19.842 20.638 15.080 2.0 1.3 62.0 78.5 4500 6000 0.41
LM603049 LM603011 45.242 77.788 19.842 19.842 15.080 3.5 0.8 53.90 69.50 4800 6300 0.37
LM603049 LM603014 45.242 79.974 19.842 19.842 15.000 3.5 0.8 57.1 73.5 4900 6500
LM603049 LM603012 45.242 77.788 21.430 19.842 16.667 3.5 0.8 57.1 73.5 4900 6500 0.38
LM102949 LM102910 45.242 73.431 19.558 19.812 15.748 3.5 0.8 55.6 78.1 5100 6700 0.3
25590 25520 45.618 82.931 23.812 25.400 19.050 3.5 0.8 80.90 106.00 4500 6000 0.55
25590 25523 45.618 82.931 26.988 25.400 22.225 3.5 2.3 80.90 106.00 4500 6000 0.59
LM503349 LM503310 45.987 74.976 18.000 18.000 14.000 2.3 1.5 50.10 71.00 4800 6300 0.31
M804049 M804010 47.625 88.900 25.400 25.400 19.050 3.5 3.3 87.1 112.0 4400 5900
386 A 382 A 47.625 96.838 21.000 21.946 15.875 0.8 0.8 80.90 102.00 3800 5500 0.73
JLM104948 JLM104910 50.000 82.000 21.501 21.501 17.000 3.0 0.5 71.7 97.9 4500 6000 0.42
LM104949 LM104911 50.800 82.550 21.590 22.225 16.510 3.5 1.3 61.2 84.3 4500 6000 0.42
LM104949 LM104912 50.800 82.931 21.590 22.225 16.510 3.5 1.3 69.5 94.0 4300 5700
368A 362A 50.800 88.900 20.638 22.225 16.513 3.5 1.3 76.50 91.50 4300 5600 0.5
368A 362X 50.800 90.000 25.000 22.225 20.000 3.5 2.0 76.50 91.50 4300 5600 0.58
529 522 50.800 101.600 34.925 36.068 26.988 0.8 3.2 131.0 159.0 4000 5300
529X 522 50.800 101.600 34.925 36.068 26.988 3.5 3.3 151.00 190.00 3800 5000 1.25
3780 3720 50.800 93.264 30.162 30.302 23.812 3.5 3.3 110.00 146.00 4000 5300 0.87
28580 28521 50.800 92.075 24.608 25.400 19.845 3.5 0.8 85.80 118.00 4000 5300 0.72
368A 363 50.800 90.000 20.000 22.225 20.000 3.5 0.8 76.5 90.5 4100 5500
28584 28521 52.388 92.075 24.608 25.400 19.845 3.5 0.8 84.8 119.0 4200 5600 0.67
539 532X 53.975 107.950 36.512 36.957 28.575 3.5 3.3 151.00 190.00 3600 4800 1.5
JLM506849 JLM506810 55.000 90.000 23.000 23.000 18.500 1.6 0.5 81.4 115.0 4200 5500
39581 39520 57.150 112.712 30.162 30.162 23.812 8.0 3.3 142.00 204.00 3200 4300 1.4
387 382A 57.150 96.838 21.000 21.946 15.875 2.3 0.8 80.90 102.00 3800 5000 0.59
387A 382A 57.150 96.838 21.000 21.946 15.875 3.5 0.8 80.90 102.00 3800 5000 0.59
387AS 382A 57.150 96.838 21.000 21.946 15.875 5.0 0.8 80.90 102.00 3800 5000 0.58
387 382S 57.150 96.838 21.000 21.946 15.875 2.3 2.3 80.90 102.00 3800 5000 0.59
387A 382S 57.150 96.838 21.000 21.946 15.875 3.5 2.3 80.90 102.00 3800 5000 0.59
387AS 382S 57.150 96.838 21.000 21.946 15.875 5.0 2.3 80.90 102.00 3800 5000 0.58
462 453X 57.150 104.775 30.162 29.317 24.605 2.3 3.3 109.0 144.0 3700 4900 1.08
28985 28920 60.325 101.600 25.400 25.400 19.845 3.5 3.3 85.80 125.00 3600 4800 0.81
28985 28921 60.325 100.000 25.400 25.400 19.845 3.5 3.3 85.80 125.00 3600 4800 0.77
395 394A 63.500 110.000 22.000 21.996 18.824 3.5 1.3 88.00 118.00 3200 4300 0.84
29585 29520 63.500 107.950 25.400 25.400 19.050 3.5 3.3 89.70 137.00 3200 4300 0.9
559 552A 63.500 123.825 38.100 36.678 30.162 3.5 3.3 172.00 240.00 3000 4000 2
39585 39520 63.500 112.712 30.162 30.162 23.812 3.5 3.3 142.0 204.00 3200 4300 1.25
395S 394A 66.675 110.000 22.000 21.996 18.824 3.5 1.3 88.00 118.00 3200 4300 0.79
HM212049 HM212011 66.675 122.238 38.100 38.354 29.718 3.5 3.5 191.0 249.0 3200 4300 1.85
3984 3920 66.675 112.712 30.162 30.048 23.812 3.5 3.3 123.00 183.00 3200 4300 1.15
39590 39520 66.675 112.712 30.162 30.162 23.812 3.5 3.3 142.00 204.00 3200 4300 1.2
399A 394A 68.262 110.000 22.000 21.996 18.824 2.3 1.3 88.00 118.00 3200 4300 0.76
482 472 69.850 120.000 29.794 29.007 24.237 3.5 2.0 132.00 186.00 3000 4000 1.35
566 563 69.850 127.000 36.512 36.170 28.575 3.5 3.3 176.00 255.00 2800 3800 1.85
484 472 70.000 120.000 29.794 29.007 24.237 2.0 2.0 132.00 186.00 3000 4000 1.3
567A 563 71.438 127.000 36.512 36.170 28.575 3.5 3.3 156.0 226.0 3000 4000
29685 29620 73.025 112.712 25.400 25.400 19.050 3.5 3.3 99.00 156.00 3000 4000 0.89
567 563 73.025 127.000 36.512 36.170 28.575 3.5 3.3 176.00 255.00 2800 3800 1.85
575 572 76.200 139.992 36.512 36.098 28.575 3.5 3.3 187.00 280.00 2400 3400 2.45
581 572 80.962 139.992 36.512 36.098 28.575 3.5 3.3 175.0 262.0 2700 3600
740 742 80.962 150.098 44.450 46.672 36.512 5.2 3.2 264.0 368.0 2500 3400
580 572 82.550 139.992 36.512 36.098 28.575 3.5 3.3 187.00 280.00 2400 3400 2.2
663 653 82.550 146.050 41.275 41.275 31.750 3.5 3.3 220.00 320.00 2200 3200 2.8
27690 27620 83.345 125.412 25.400 25.400 19.845 3.5 1.5 112.00 186.00 2600 3600 1.05
498 493 84.138 136.525 30.162 29.769 22.225 3.5 3.3 145.00 220.00 2400 3400 1.6
749 742 85.026 150.089 44.450 46.672 36.512 3.5 3.3 286.00 405.00 2200 3200 3.3
HM518445 HM518410 88.900 152.400 39.688 39.688 30.162 6.4 3.3 242.00 355.00 2000 3000 2.85
HM218248 HM218210 89.974 146.975 40.000 40.000 32.500 7.0 3.5 229.00 355.00 2200 3200 2.5
42381 42584 96.838 148.430 28.575 28.971 21.433 3.5 3.0 130.00 196.00 2200 3200 1.65
L521949 L521910 107.950 146.050 21.432 21.432 16.670 1.6 1.6 86.4 167.0 2300 3100
COMPANY INTRODUCTION
PRODUCTION PROCEDURE
FUNCTION
PACKING AND SHIPPING

FAQ

>> 2PCS Window Restrictor Password Baby Safety lock with Strong Adhesive, for Doors, Windows, Fridge and Cupboard
>> Colorful Masking Gold Foil Logo Kawaii Paper Washi Tape
>> 2022 Car Door Lock Protector Cover For Tesla Model 3 Door Check Arm Protection Cover Car Accessories
>> 128GB TF Memory Card / SD Card for Dash Camera in High Quality
>> Christmas Scarf Jacquard Printed Pattern Cashmere Neck Deer Winter Knitted Scarf
>> 4.3" TFT LCD Touch Screen 0.1-600MHZ Max600 Plus HF/VHF/UHF Antenna Analyzer
>> 2200W Big Air Flow Energy Saving Axial Industrial Portable Air Cooler Hy-L06CZ-1
>> Wood Impregnation Autoclave with Cac, CCA and Mca
>> Full Electrical Front Strut Dust Boot Suspension Dust Boots Blow Molding Making Machine
>> Ck0640 High Precision CNC Machine Mini CNC Milling Machine Metal Cutting Lathe Machine with Optional Milling Power Head
>> ABB PM803F 3BDH000530R1 Module card parts inventory
>> 2025 Mirror Acetic Silicone Sealant 27+Years Manufacturer Kastar 733 Adhesive Glass Glue
>> Customization Anodizing Aluminum Hexagonal Hole Shapes Perforated Metal Mesh Sheet
>> Woodworking Cutting Machines Chain Saw Automatic Wood Saw Machine Chain Saw Mobile Log Portable Bandsaw Sawmill Horizontal Portable Band Sawmill Machine
>> DSRF197 3BSE019297R1
>> Factory Direct Chemical Propylene Glycol E1520 Food/ USP/ Industrial Grade for Sale CAS 57-55-6
>> Cheap High Speed Vertical Machining Center CNC Milling Machine 24 Tools VMC850 VMC1160
>> High-Precision Socay GSK CNC Milling Machine with Fanuc Control
>> Production capacity 800-1000kg/h Cleaner and Safer Plastic Recycling Machinery Line Pelletizer
>> Hight Quality Wholesale Toys Children′s Toy Flint Gun
