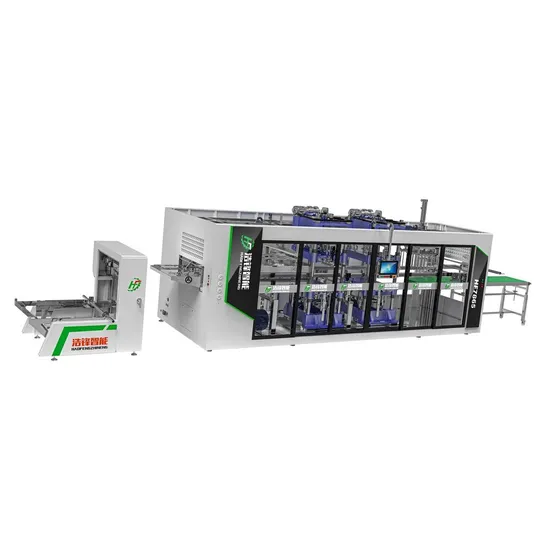

| Applicable raw materials | PP, PS, PET, PVC, etc |
| colour | Choose from three colors: gray, blue, and green |
| machine overall size | 12.8 meters in length, 2.7 meters in width, and 2.6 meters in height |
| Maximum molding area | 900*850 mm |
| Maximum cutting area | 900*850 mm |
| Applicable sheet width | 560~880 mm |
| Applicable sheet thickness | 0.12~2.0 mm |
| Material roll diameter | ≤1000 mm |
| Up and down itinerary | 150 mm |
| Cutting motor power | 11 kw*2 |
| Forming motor power | 5.5kw*2 |
| Pulling motor power | 4.5kw |
| Stretching motor power | 3kw |
| Stacking robotic arm motor power | 1.5kw |
| Control system | Delta |
| Servo motor brand | Delta |
| Heating power of three-stage upper and lower furnaces | 22brick*7brick*0.65KW*2=200kw |
| Installed power | 243KW |
| Maximum cutting force | 1000 KN |
| Approximate weight of the whole machine | 15000Kg(about) |
| Empty operation frequency | ≤60pcs/min |
| Four column pressure error | 0.5ton |
| Power requirements | 380V /50HZor220V/60hz |
| Program memory function | Yes |
| Lubricating oil distributor | Progressive distributor |
| Material of shaft pin sleeve | Bearing steel |
| Four column pressure error | 0.5 tons |
| Temperature control system | Yamatake Intelligent Controller from Japan |
| Model platform structure | casting |
| Processing method of mold base | CNC gantry machining after welding |
| Surface treatment method | Spray coating after sandblasting |
| Reducer | Newstart Heavy Duty Planet |
| Infrared heating brick | Tianbao with insulation cotton |
| Electrical component brand | Schneider Schneider |
| Main solenoid valve brand | MAC |
| Vacuum pump | Raffles |
| cooling-water machine | Domestic well-known brands |
