Stainless Steel Carbon Steel Grating Welding Machines

Product Description

1200mm steel grating Equipment Steel Forging Grating Machine Product Description

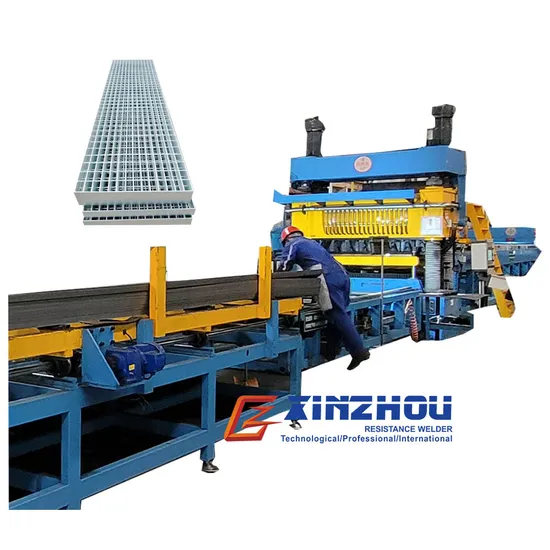

Steel Grating Welding Production Line 1. The output current of the transformer is large, the service life is long. Because the circuit is short, the output power is large, the noise is small, and the structure is compact and reasonable.
2. The equipment is equipped with a high pressure hydraulic correction mechanism to ensure that the original steel grating is more flat.
3. The cross bar blanking device adopts servo motor to automatically feed, and a double rod stocking mechanism is added to speed up the feeding speed.
4.. The clamping load bar feeding mechanism provides pre-feeding and pre-load material for the load bar to reduce the waiting time of the equipment.
5. The machine is controlled by HMI and PLC.
6. The Internet technology is used to realize the remote monitoring of the machine, carry out fault diagnosis, and remotely modify the program according to the user's requirements.
7. Servo pulling can realize adjustable cross bar distance, which is convenient for the manufacturer to save materials.
Circuler Saw Machine 1. The height of the spindle is adjustable to ensure the best feed angle,high speed and good efficiency.
2. The spindle structure is stable, there are 6 guide rails, the blade speed is stable, the blade is durable
3.There is no need for holders to do positioning. Automatic feeding and high cutting accuracy.
4.Saw blade feed speed is adjustable to meet different specifications of steel grating.
5.The designed is a separable structure, which is convenient for specification adjustment and maintenance.
6. Servo pulling can realize adjustable distance, which is convenient for the manufacturer to save materials.
7.The machine is controlled by HMI and PLC.8.The Internet technology is used to realize the remote monitoring of the production site, carry out fault diagnosis, and remotely modify the program according to the user's requirements.
Hang-out Cut Machine 1. The guiding mechanism is convenient for the original steel grating to enter.
2. The main saw blade has a rebound mechanism to prevent cutting the load bars on both sides.
3. The scrap car could slides out which is convenient for crane lifting and reducing manual.
Side Discharge Machine 1.The original steel grating falls as a whole with high efficiency, perfectly fits the speed of the production line, and reduces
labor intensity.
2.The frame structure is stable and durable.3.Secondary discharge, machine can be stacked with
3.stacks of steel gratings.
4.The machine is controlled by HMI and PLC programming control mode.. Product Parameters

Product Name	steel grating welding production line	Style	GGV-1000-1000/GGV-1500-1000/GGV-1600-1000/GGV-2000-1000
Brand	XINZHOU	Colour	blue/yelllow/custom
Rate Power	4*250kVA/6*250kVA/1600KVA/2000KVA	Place of Product	Zhejiang Province,China
Input Voltage	380V*50HZ;customized	power phase number	phases;4wires
Size	Sofa: 750*350*350 CM	After sale service
Duty Cycle	50%	Air Pressure	06-0.8mpa
Flat Steel Height	20-100mm	Maximum Flat Steel Length	7500mm
Thickness of Flat Steel	3-6mm/3-8mm	Welding Width	1000mm
Welding Speed	16-30/(16-20)cross bars/min	Discharge Mode	plate processing side discharge

Company Profile

Ningbo Xinzhou Welding Equipment Co., Ltd. was founded in 1998, is a company mainly engaged in researching, designing, manufacturing and selling automation welding equipment, which is also a national high-new tech enterprises in China. Its products are widely used in home appliances,hardware, auto parts production, petrochemical, liquid packaging, nuclear power station,hydropower station, steel structure platform, expressway, high-speed railway, rail transit and other large-scale infrastructure construction and precast constructions. With excellent quality and perfect service, the company has been widely recognized and unanimously praised by customers, products sell well in more than 30 countries and regions, and cooperate with a number of well-known enterprises to establish a long-term strategic partnership. Certifications We have passed the international certifications such as CE certification, ISO9001 quality management system certification.
Packaging & Shipping
Exhibition Since its establishment 25 years ago, xinzhou has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 9,000 customers
FAQ Q1: What is the price of your machine?Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us thefollowing information.* The material and thickness of your product* The minimum and maximum size of your product* The welding position of your products* The automation level that you want to achieve* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.Q2: What is the warranty period of your machine?Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost. Q3: What if my machine damaged doing the warranty period?Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.Q4: What is the delivery time of your machine?Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.Q5: Can we send the sample to you for welding test?Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitableTechnical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.Q7: What's your payment terms?Answer: we can accept the following payment terms: T/T, L/C, Western Union Q8: How can we install the machine?Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provideyou the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we willsend engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.

---
