WiFi6 Standard 5g Wireless Router Support Poe, 2*2 MIMO Technology, with 4 Gigabit LAN Ports

Product Description

WiFi6 standard 5G wireless router support PoE,2*2 MIMO technology,With 4 gigabit LAN ports
Product Description This is an WiFi6 standard 5G wireless router support PoE .
Equipped with IPQ6010 chipset, it comply with 802.11ax, 2*2 MIMO technology, dual band, up to 1800Mbps data rate; With 10/100/1000/2500Mbps WAN port, it can work as an wireless PoE router, to provide more upload/download throughput to meet with the demand of high flow.
It is an 4G/5G wireless router with PoE out function, With 4 gigabit LAN ports, all ports can provide 48V PoE out, can provide 5G data and PoE for CCTV, Car or other special applications.
With skypworks high power PA, the RF power up to 23dBm, equipped with external MIMO antennas, easy to achieve long range wireless coverage with better wireless signal and more stable wireless experience.
It with QSDK driver, support seamless roaming, 5G prior, OFDMA and DL/UL-OFDMA (37 users in 5.8G, 18 users in 2.4G); What's more, this device can work with OpenWRT firmware also, our technical firmware team can provide efficient technical support for fast firmware development.

Hardware
Chipset	IPQ6010+5022+5052+QCA8081+QCA8075
Standard	802.11ax/ac/b/g/n
DDR	256MB(16bit)*2=1GB, maxi up to 2GB
Flash	NOR-8MB AND NAND-128MB
2.4G Frequency	2.4GHz - 2.484GHz
2.4G Wi-Fi standard	802.11b/g/n
5.8G Frequency	5150~5850MHz
5.8G Wi-Fi Standard	802.11 ax/ac
Interface/	1 * 10/100 /1000/2500Mbps RJ45 WAN Port (WAN port support 24~48V passive in if need, but if WAN port support PoE in, LAN ports can't support PoE out)
	4 * 10/100 / 1000Mbps RJ45 LAN Ports(Support 48V active PoE out if powered by DC)
	1 * Reset
	1 * SIM card slot support 4G/5G, M.2 interface
	1 * Bluetooth (Optional with extra cost)
	1 * USB3.0 Port
	1 * SD Card Slot
	1 * Type C USB
	1 * DC Port, support 12~48V DC

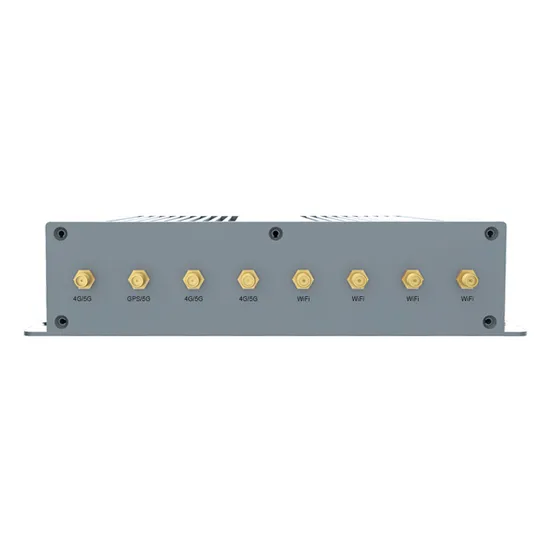

Antenna	IPEX Connector, 4*5dBi omni WiFi antennas 1*Bluetooth antenna (Optional with extra cost) 4*4G/5G antenna 1*GPS antenna
Data Rate	1800Mbps ( 2.4G: 591Mbps (11ax 2x2); 5.8G: 1238Mbps (11ax 2x2))
End Users	150+
RF Power	2.4g ≤ 24dBm 5.8g ≤ 24dBm
DC	12V~48V
PoE	WAN: 48V Passive PoE in LAN: 48V active PoE out
LED light	Sys; 5.8G wifi; 2.4G wifi; WAN; LAN, 5G; 4G, GPS
Max Power Consumption	≤ 60W
Size	TBD
Weight	TBD
Working Temperature	-20°C to 45°C
Storage Temperature	0°C to 70°C
Humidity	5%~95% (non-condensing)
