US$10,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Energy
Heat Sterilization
Property
Physical Sterilization
Type
Microwave Sterilization Equipment
Dimension(L*W*H)
Depends on The Capacity
Application
Beverage Production and Packing Complete Lines
Processing Types
Juice & Beverage
Transport Package
Wooden Package
Specification
CE, ISO, UL
Production Capacity
50 Sets/Year
Packaging & Delivery
Package Size
600.00cm * 300.00cm * 550.00cm
Package Gross Weight
5000.000kg
Product Description

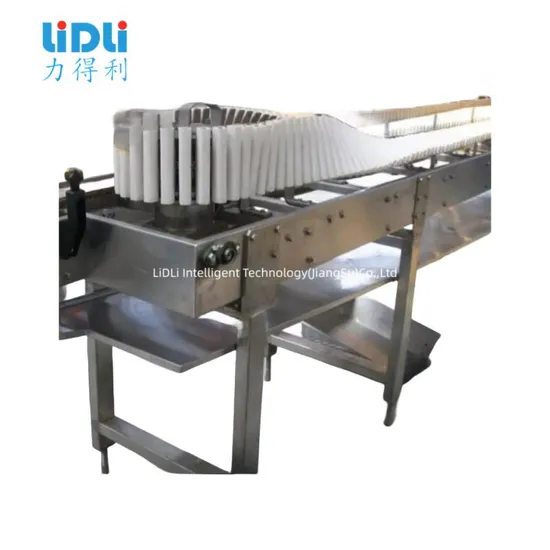

Inverted bottle sterilization machine
Inverted bottle sterilization machine is a special matching device developed and researched according to the process characteristics of the high-temperature filling production line. The device will roll the product after filling and capping, use the high temperature of the product, and perform secondary sterilization of the cap in a certain period of time to ensure the quality of the product. During the conveying process, the product is guided by two mutually perpendicular chainplates, which implements automatically such operations as bottle inversion, time-delay sterilization, and automatic erection. The whole process is stable and reliable.
Technical parameters:
| No | Model | Machine name | Production capacity | Power
(kW) | Application |
| 1 | DP-6 | Inverting Bottle Sterilizer | 4000BPH | 0.75 | The sterilization time is 35 seconds, calculated according to the bottle diameter of 65mm.
It is used to turn the bottle over after hot filling and perform high-temperature sterilization and airtightness on the bottle mouth and cap. |
| 2 | DP-8 | Inverting Bottle Sterilizer | 6000BPH | 1.1 |
| 3 | DP-12 | Inverting Bottle Sterilizer | 12000BPH | 1.5 |
| 4 | DP-16 | Inverting Bottle Sterilizer | 18000BPH | 3 |
| 5 | DP-20 | Inverting Bottle Sterilizer | 24000BPH | 4 |
| 6 | DP-24 | Inverting Bottle Sterilizer | 31000BPH | 5.5 |
>>
