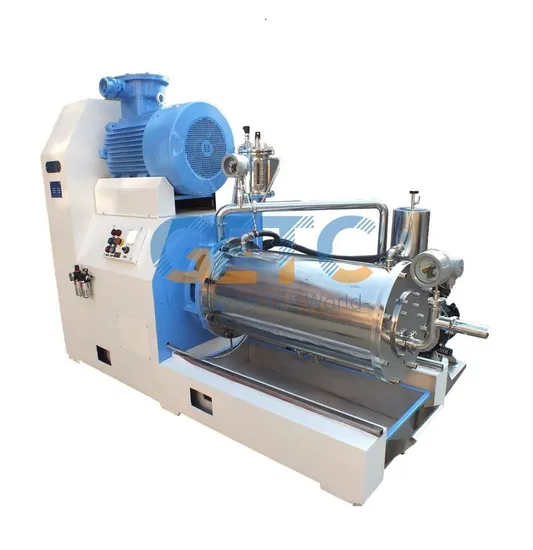

Large Volumehorizontal Disc Type Sand Ball Mill Grinding Mill

Product Description

Product Description The delivery pump circulates the materials in the tank and the materials in the grinding chamber. The discs drive the grinding medium inside the grinding chamber to do irregular movements in all direction to put the materials under
the. action of constant collision and friction. At same time, the materials are separated from the grinding medium by the sieve and keep circulating from the tank to the grinding chamber to obtain smaller particle size, narrower particle size range.
The machine adopts the dual end surface mechanical sealing with reliability and durability, mated with the Cooling liquid compatible to the ground material in order to reduce the pollution of ground material. It makes the material into aggressiveness and give the strong grind so that the grains reaches the required fineness in short time.The machine is easily operated with reliability and high production efficiency. Depending to different requirements, the different models of machines can satisfy with customers.
The type dispersing disk is functioned by the slot hole and multiplied profiles to produce the strong bump and friction among mediate ball bodies.Therefore, the material can be ground and dispersed in high efficiency.
Features • Low energy consumption ratio, High cost-effective.
• With the belts to conveyor driving force from the motor of the main shaft. The grinding discs are specially designed to have higher effiency and lower electric consumption. It is with higher performance-cost ratio among the grinding machines.
• The machine is with integrated on-spot control panel, easy to operate and clean.
• Grinding chamber is with cooling jackets. Input cooling water into the jacket when running to have good cooling result, normally the temperature increase will be within 10ºC.
• The machine is with temperature monitor and control. With settable protection value to ensure the quality of the finished products.
• Full specification, can be customized.
• Specifications ranges from 5L to 100L, which can be customized to be Ex-proof type. • Grinding chambers made of Polyurethane or Zirconium are in option to ensure its anti-abrasiveness and also to prevent materials from metal pollution.
Applications Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical, etc.

Product Parameters

Model	Volume (L)	Dimension (L×W×H) (mm)	Motor (kw)	Feeding Speed (rpm)	Capacity (kg/h)
WM-30	30	1650×800×1600	22	0-40	50-60
WM-50	50	2100×1050×1700	30	0-40	100-800
WM-60	60	2310×1150×1650	30	0-40	100-1000
WM-90	90	2500×1150×1700	37/45	0-40	120-1200
WM-100	100	2550×1180×1720	45	0-40	150-1350

Related Products Pin Type Bead Mill High Efficiency Bead Mill Pipeline High-Shear Emulsifier
Company Profile Changzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.

The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .
We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.
We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.
Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.
