China Manufacturer Wuxi CNC Cylindrical Grinding Machine Price

Product Description

Product Description
Main purposes of the machine tool:

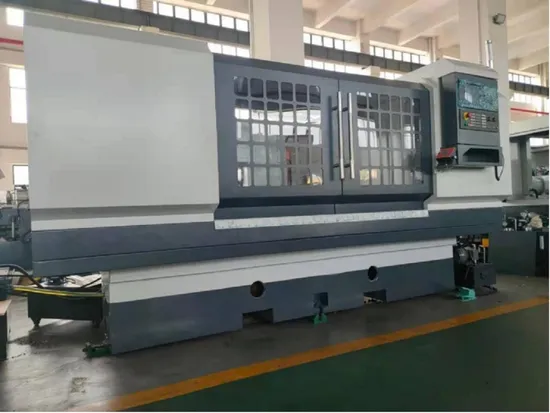

MK1332 CNC cylindrical grinding machine is a CNC cylindrical grinding machine developed by our company.
1. This machine tool is a two-axis CNC cylindrical grinding machine that uses a Siemens 808D CNC system from Germany with an LCD display. The cylindrical grinding wheel feed and table movement are both driven by a servo motor via a ball screw. The wheelhead feed uses a linear feed method, and the feed guide rail uses a linear rolling guide rail to ensure rigidity and sensitivity during feeding. The worktable guide rail uses a flat-V-shaped plastic-coated guide rail to improve its shock resistance and sliding properties.
2. The head stock motor drives the dial work piece to rotate through a pulley, and the spindle rotation is controlled by frequency conversion to achieve stepless speed regulation.
3. The machine tool is equipped with automatic timed quantitative lubrication to ensure the lubrication of the guide rails and lead screws. The machine tool is equipped with a fully enclosed protective cover, a front-mounted swivel operating box, and a backpack-style electrical cabinet at the rear.
Processing object:
This machine tool is suitable for cylindrical multi-stage long shaft parts external grinding, suitable for machining industry, automobile, motorcycle industry and large and medium mass production of shaft parts, processing parts of the external cylindrical surface, conical surface, especially suitable for multi-stage shaft parts processing, can realize the operation of one person multi-machine. It is suitable for workpieces with an outside diameter of 320mm and a length of 1000mm.
Product Parameters
Key Technical Parameters for CNC Cylindrical Grinding Machine

Serial number	Name	Specification
1	Max. Grinding OD scope	8-320mm
2	Max. grinding length of work piece	1000mm
3	Worktable rotation angle	+4 -3 °
4	Center height of tops	180mm
5	Headstock Top Morse	4#
6	Tailstock Top Morse	4#
7	Max. Loading weight of work piece	150kg
8	Outer hole roundness	2μm
9	Outer hole cylindricity	3μm
10	Outer hole surface roundness	Ra0.32

Detailed Photos
Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Certifications
After Sales Service
1. Accuracy acceptance: The roundness, cylindricity, and surface roughness of the inner hole shall be inspected in accordance with the technical agreement.
2. The acceptance inspection will be conducted in two steps. In the first step, the Party A team will conduct an on-site inspection of the equipment at the Party B's site, in accordance with the standards stipulated in the technical agreement. In the second step, a spot check will be conducted on the processing accuracy of the equipment. After a continuous idle running for 2 hours, the grinding test piece will be performed. If it meets the requirements stipulated in the technical agreement and drawings, it will be deemed as qualified.
3. During the acceptance period of the equipment, Party B shall provide free training to Party A's operating personnel and maintenance personnel.
4. Machine tool warranty
Upon acceptance of the machine tool, Party B shall provide a one-year warranty service for the quality of the main machine. After the warranty period, Party B will still provide high-quality services.

---
