High Quality Bauxite Zinc Oxide Production Line Rotary Kiln

Product Description

High Quality Bauxite Zinc Oxide Production Line Rotary Kiln Product Description
Rotary kiln is a high-temperature processing device used to heat materials to high temperatures through kneading in a continuous process. Materials produced using rotary kilns include: cement, lime, refractory materials, metakaolin, titanium dioxide, alumina, vermiculite, iron ore pellets, etc. It can also be used in the front-end of metal extraction, preparing ore for smelting by roasting various sulfide ores.
Applied material :Cement, lime, Dolomite, Limestone, Bauxite, Ceramsite, Light Expanded Clay Aggregate, sponge iron, Lead, zinc mineral raw material, Magnesium, Petroleum, Ceramic Sand, Kaolin, Hazardous waste, sludge waste, oily sludge, industrial waste, smelt lateritic nickel ores, nickel pig iron, etc.

Featurers
1. The axial movement of the cylinder is controllable
The cylinder of the rotary kiln is made of high-quality killed steel plate, and the customer can flexibly control the axial movement of the cylinder.
2. Flexible speed
The transmission rotates the cylinder at a required rotational speed through a ring gear provided in the middle of the cylinder.
3. Good sealing performance
In order to prevent cold air from entering and flue gas dust from overflowing the cylinder, reliable kiln tail and kiln head sealing devices are provided at the feeding end and the discharging end of the cylinder.
4. Easy installation and maintenance
The larger rotary kiln is equipped with an auxiliary transmission that rotates the cylinder at a very low speed to meet installation and maintenance needs.
Product Parameters

Product Specification(m)	Diameter (m)	Length (m)	Capacity (t/d)	Rotation speed (r/min)	Motor power (kw)	Total weight (t)
Φ2.0×40	2	40	160	0.23-2.26	37	119
Φ2.2×45	2.2	45	180	0.21-2.44	45	128
Φ2.5×40	2.5	40	200	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	250	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	300	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	350	0.10-1.52	55	198.5
Φ2.8×44	2.8	44	450	0.437-2.18	55	201.58
Φ3.0×45	3	45	500	0.5-2.47	75	210.94
Φ3.0×48	3	48	700	0.6-3.48	100	237
Φ3.0×60	3	60	800	0.3-2	100	310
Φ3.2×50	3.5	50	1000	0.6-3	125	278
Φ3.3×52	3.3	52	1300	0.266-2.66	125	283
Φ3.5×54	3.5	54	1500	0.55-3.4	220	363
Φ3.6×70	3.6	70	1800	0.25-1.25	125	419
Φ4.0×56	4	56	2300	0.41-4.07	315	456
Φ4.0×60	4	60	2500	0.396-3.96	315	510
Φ4.2×60	4.2	60	2750	0.41-4.07	375	633
Φ4.3×60	4.3	60	3200	0.396-3.96	375	583
Φ4.5×66	4.5	66	4000	0.41-4.1	560	710.4
Φ4.7×74	4.7	74	4500	0.35-4	630	849
Φ4.8×74	4.8	74	5000	0.396-3.96	630	899
Φ5.0×74	5	74	6000	0.35-4	710	944
Φ5.6×87	5.6	87	8000	Max4.23	800	1265
Φ6.0×95	6	95	10000	Max5	950×2	1659

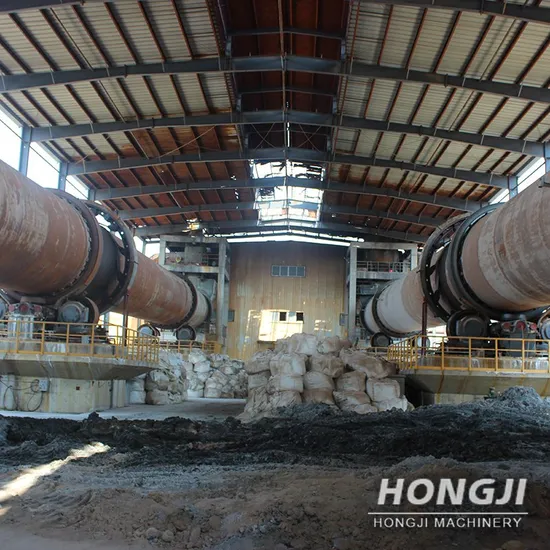

Detailed Photos
Hongji Mining Machinery Co, Ltd. is a large production-oriented enterprise with import and export qualifications, mainly providing "whole mining beneficiation equipment system and service, and is a large-scale joint stock enterorise intecrating RaD, manufacturing, sales. and EPC proiect The company is headguartered at No. 166 North Taojia Road, Xingyang City, Zhengzhou City, Henan Province , with a total area of more than 80000 square meterAfter more than 20 years of development, now t has three producton bases, more than 180 sets of varous arge and medium-sized processing machining ivetina. weldina. and assemblv equipment. more than 200 emplovees. with 75 senior and intermediate itles' professional encineers.
FAQ

1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Guaranteed:
If products 'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that "for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
A. We usually accept T/T, L/C, but other terms also workable.
B. We take pictures of finished products before delivery.
5. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accommodation, and food.

---
