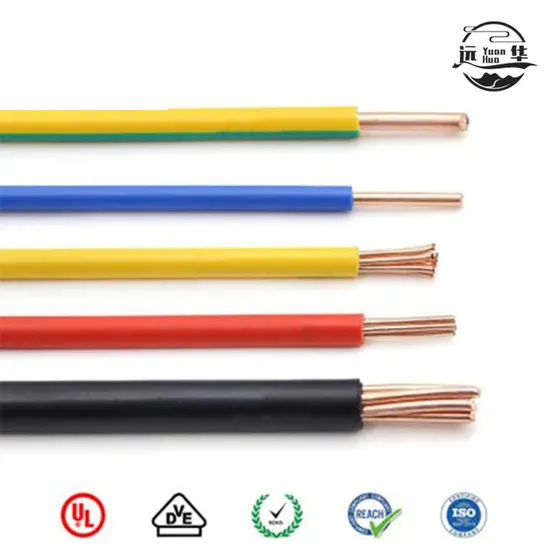

0.75mm2 1.0mm2 1.5mm2 0.35mm2 PVC Automotive Wires Flry-B Auto Cable for Automobile Electric System

Product Description

We founded on 2019-12-18, is located in No.3 Road, Economic Development Zone, Botou City, Cangzhou City, Hebei Province, engaged in wire and cable manufacturing, YJV YJLV BV BVR RV RVS RVV Low smoke halogen free, fireproof cable, fire resistant, flame retardant, wire, control cable manufacturing. The products have passed the national security mandatory certification (3C certification), the production license issued by the state, the adoption of international standard product identification certificate, and obtained the Hebei Province energy saving record certificate, Cangzhou energy saving record certificate. Companies adhering to the "integrity, cooperation, win-win, sharing" business philosophy, "with our efforts to ensure the success of customers" immortal commitment, the introduction of advanced professional production machines and first-class professional and technical personnel, so that the company based on the industry's leading position. The company is actively concerned about the environment and occupational health and safety. The company takes "high starting point, high standard, high requirements" as the production goal, steadily improves the quality management level, and ensures that the product quality reaches the international industry standard.
Applications
Power cord or internal wiring with low mechanical stress for electrical equipments, machineries, distribution panels, luminaires and other electrical used in dry indoor premises, substitutes
High conductivity high precision oxygen free copper
Strong current load capacity, low resistance, good conductivity.Oxygen free bare copper conductor low resistance/voltage stability
High purity oxygen-free copper conductor, strong signal transmission, oxygen-free bare copper good conductivity, low resistivity, to ensure the safety of electricity
PVC material
Environmentally friendly PVC material, bright color, clear logo, convenient construction. Low core deflection, uniform thickness, safe use of electricity
Low core deviation rate, the use of advanced equipment to pay attention to each process, to eliminate the damage caused by the thinnest point Discharge ignition safety issues to ensure the low eccentric core of each wire

Conductor Insulation Cable Nominal Cross-section No.andDia.of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx. mm2 No./mm mm mΩ/m mm mm mm kg/km 1x0.50 16 /0.21 1 37.1 0.48 2 2.3 8 1x0.75 24/0.21 1.2 24.7 0.48 2.2 2.5 12 1x1.00 32/0.21 1.35 18.5 0.48 2.4 2.7 15 1x1.50 30/0.26 1.7 12.7 0.48 2.7 3 20 1x2.00 40/0.26 2 9.42 0.6 2.9 3.2 26 1x2.50 50/0.26 2.2 7.6 0.7 3.3 3.7 32 1x3.00 60/0.26 2.5 6 0.7 3.5 3.9 37 1x4.00 56/0.31 2.75 4.71 0.8 4 4.4 49 1x6.00 84/0.31 3.3 3.14 0.8 4.6 5 68 1x10.00 80 /0.41 4.5 1.82 0.8 6 6.5 117 1x16.00 126/0.41 6.3 1.16 0.8 7.5 8.3 193 1x25.00 196/0.41 7.8 0.74 1.04 9.5 10.4 274 1x35.00 276/0.41 9 0.53 1.04 10.6 11.6 397 1x50.00 400/0.41 10.5 0.37 1.2 12.9 13.5 547 1x70.00 555/0.41 12.5 0.26 1.2 14.8 15.5 769 1x95.00 740/0.41 14.8 0.2 1.28 17 18 990 1x120.00 960/0.41 16.5 0.15 1.6 18.7 19.7 1250

When can I get the price?
We usually quote within 6 hours after we get your inquiry. lf you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.
Are you a manufacturer or trading company?
We are a professional manufacturer with many years of experience. We can control your order from the first beginning to the last. Welcome to visit us.
How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What is your MOQ?
The MOQ is different, as the different cable type.
What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil, also according to customer's requirement.
Does your company accept OEM production?
Yes, OEM/ODM is available.

---
