Basic Info.
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Structure
Single-Stage Pump
Wet End
A05, A07, A49, Rubber, Polyurethane
Sealing
Mechanical Seal, PTFE Packing, Hi-Seal
Lubrication
Grease and Oil
Color
Customer Specifications Upon Request
Standard or Nonstandard
Standard
Transport Package
Wooden Case
Production Capacity
8, 000 Sets/Years
Product Description

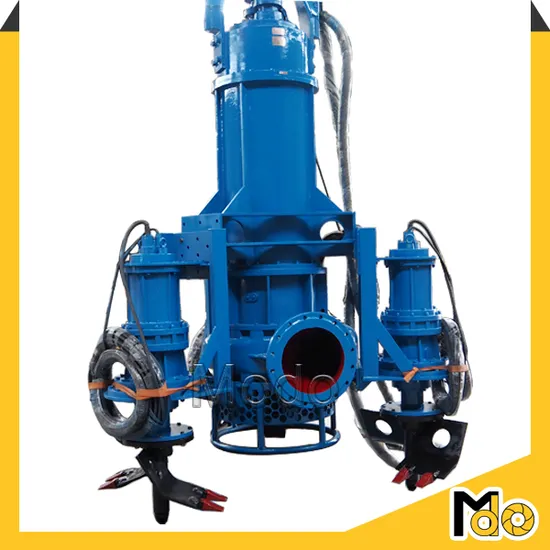

Centrifugal Electric Hydraulic Submersible Slurry Pump Gravel pump Sand pump Mud pump for Sand Dredging with Agitator cutters
Characteristics
| ·Type: | ·Media: | ·Application: |
| centrifugal | slurry | transporting |
| ·Other characteristics: | ·Flow rate: | ·Head |
| Single-stage | Min.:0m3/h | Min.: 0m |
| | Max.: 2412m3/h | Max.: 64m |
| ·Priming | | |
| submersible | | |
Description
The Modo SS Series Submersible Slurry Pumps are electro submersible centrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.
| Item | Submersible slurry pump |
| Model | SS |
| Material | 27% Chrome White Iron, SS 304,SS 316, or customized |
| Color | Decided by user |
| Mode | Submersible |
| Impeller | single impeller |
| Drive | Direct coupling |
| Seal | Packing seal or mechanical seal |
| Speed | 1460r/min,980r/min |
| Theory | Centrifugal pump |
| Structure | Single stage pump |
| Usage | High density slurries with solids etc. |
| Power | Electric motor |
| Standard | ISO |
| Application | Mining. civil construction, industry, dredging |
| Outlet diameter | 3.15-16inches |
| Capacity | 22-2400 m3/h |
| Head | 8.6-70m |
| Power | 7.5-315kw |
| Warranty | 1year |
| Certificate | ISO9001 |
| OEM | Acceptable |
| Max Solids Dia | 2.4 inches |
Features
Submersible work without influence of suction head;
No assistant vacuum pump, save invest;
No noise, keep the silence of work station;
With agitator, no need extra stirring devices, more convenience for operating;
It need not build pump house.
Directly work on the surface of slurry, with higher efficiency to deliver slurry.
Application
Transfer of waste water, effluent and solids laden water for
Water Treatment
Building Services
Sumps and Basements
Mining
Civil Construction
Industry
Municipal
Processing
Details
FAQ
A: What kind of company you are?
Q: We are centrifugal pump manufacture located in Boy Town, Baoding, China, with more than 20years experiences. We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.
A: What's the quality assurance you provided and how do you control quality?
Q: Established a procedure to check products at all stages of the manufacturing process: Casting, Heat treatment, Machining, Assembly, and Testing.
Q: Can you install the motor or diesel engine with the pump for us?
A: yes, we can, it's no problem, and we are experienced in this.
Q: What's your MOQ?
A: Trial sample order is OK.
Q: What are your payment terms?
A: T/T, L/C, D/P, D/A......
Q: What certificates do you have?
A: CE, ISO 2008, UL.....
Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.
Q: What is the delivery time?
A: 15-30 days according to customer quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.
Q: What information should I offer to get pump solution?
1, Material:
2, Head: m
3, Flow: m3/h
4, Medium size: mm
5, Particle shape (smooth or sharp):
6, Medium pH level:
7, Temperature:
8, Drive type:
9. Power supply:
Contact me for detail offer with curve and drawing!
