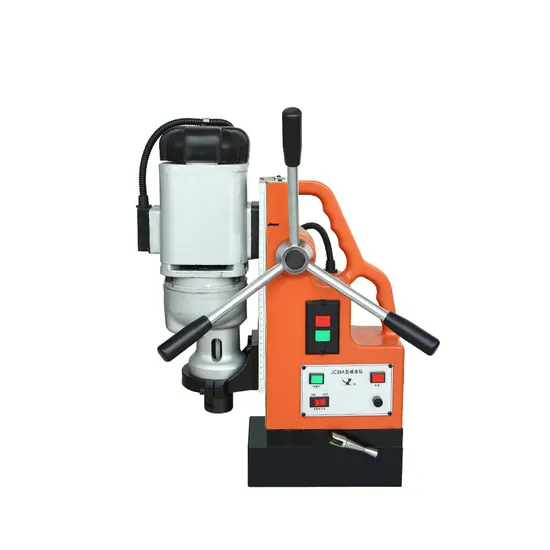

Jc28A-2 Jc28A-3 Jc32A Jc38A Jc49A High Precision Industrial Grade Superpower Positive and Negative Turntable Magnetic Drill

Product Description

Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of
working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power
controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They
are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine for
its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an
ideal machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working,
boilers, machinery manufacturing, environmental protection, oil and gas pip line industries

MODEL	JC32A	JC32B	JC38A	JC49A
Voltage	380V	220V	380V	380V
Motor power (w)	1600	2000	1700	1900
Speed (r/min)	170r/min	210r/min	170r/min	125r/min
Magnetic adhesion(N)	17000	19000	18000	19000
Twist drill (mm)	Φ32	Φ32	Φ38	Φ49
MAX TRAVEL(mm)	260	260	260	260
Min. plate thickness(mm)	10	10	10	10
Spindle taper	Morse4#	Morse4#	Morse4#	Morse4#
Rotation Angle	Left and right 45°	Left and right 45°	Left and right 45°	Left and right 45°
Horizontal Travel (mm)	20	20	20	20
Packing size(mm)	550*210*585	550*210*585	550*210*585	550*210*585
N.W / G.W(kg)	47.4/54	47.4/54	47.4/54	47.4/54

---
