CNC High Precision Straight Gear Formed Grinding Machine 1-16 Module

Product Description

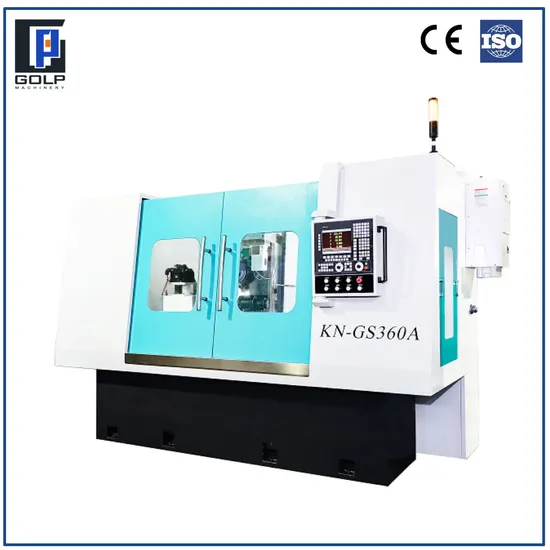

1.GS360A straight - gear formed gear grinding machine is a precision CNC machine tool which is applicable to batch grinding and machining of high precision cycloidal gear and straight gear . The machine tool can also grind equal plate in various sections , plug gauge , rolling wheel , spline shaft and broach . The machine tool is widely used in gear profile grinding in industry of RV reducer and straight gear machining .
2.Normal dressing method with follow - up three axes association is adopted for grinding wheel dressing , which shortens non - cutting time of grinding wheel dressing , improves work efficiency , dresses random gear profiles and lengthens service life of diamond dressing wheel sharply .
3.The machine tool is equipped with five AC servo axles as well as AC variable frequency speed regulation motorized spindle . The machine tool enjoys high rigidity body design and high - power grinding wheel motorized spindle . Water - soluble cutting liquid can be used to realize cooling , which improves security of usage of machine tool and saves usage cost .

Model of machine tools	GS360A
Maximum external diameter of workpiece (mm)	∅360
Minimum core diameter of workpiece (mm)	∅20
Index gear number	random
Module (mm)	1-10/16
Maximum face width (mm)	500
Maximum distance between centers of headstock and tailstock (mm)	750
Maximum travel of longitudinal shift shaft of workpiecek (mm)	700
Maximum travel of longitudical shift shaft of workpiece (mm)	380
Maximum movement speed of longitudinal shift shaft of workpiece (m/min)	12
Maximum movement speed of feed shaft of grinding wheel along radical direction of workpiece (m/min)	1.2
Diameter of grinding wheel (mm)	∅50-250
Thickness of grinding wheel (mm)	<=68
Center hole of grinding wheel(mm)	∅20/∅32/∅75
Range of working speed of grinding wheel (rpm)	2500-8000
Maximum movement of grinding wheel dresser along radical direction of wheel spindle(mm)	90
Taper hole of spindle	Mohs No.5
Maximum power of gringding tool(kw)	15
Machine overall dimension	3380×1390×2090
Total weight of machine tool (kg)	6500
Gear machining precision	(GB/T10095.1-2008) Class 4

Δ Due to the continuous progress of technology, this content is for reference only, in case of any change without further notice.the technical documents signed by both parties shall prevail.
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms? A:T/T,L/C,Paypal,Western Union etc. Q:How long is the product warranty? A: 24 months Q: Are you a trading company or a manufacturer? A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation. Q: What kind of product certification do you have? A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers. Q: Do you have after sales service? A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory. Q: Do you test all your goods before delivery? A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
