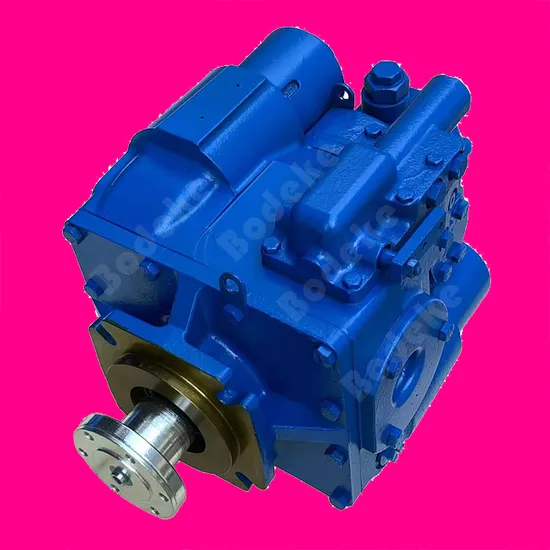

Hydraulic Piston Pump for Eaton, Mixer Truck Hydraulic Axial Plunger Piston Motor Pump 6423

Product Description

The Mixer Truck Hydraulic Pump 6423 designed for Eaton is a crucial and technologically advanced device in the domain of mixer truck engineering.
This hydraulic pump is specifically crafted to meet the exacting needs of mixer trucks. It serves as the power source that drives the hydraulic system, enabling a series of essential functions. Primarily, it provides the force required to rotate the mixer drum. The pump generates the appropriate hydraulic pressure and flow rate to ensure the drum rotates smoothly and at the correct speed, which is vital for the homogeneous mixing of concrete or other substances. This precise control over the drum's rotation directly impacts the quality of the end product and the overall efficiency of the mixer truck's operation.
The construction of the 6423 pump is of top-notch quality. It is built with robust and durable materials that can endure the harsh and demanding conditions of the construction and transportation sectors. These materials are carefully selected to resist corrosion, wear, and the mechanical stresses that occur during continuous and heavy-duty use. This durability not only extends the service life of the pump but also reduces the frequency of maintenance and replacement, thereby saving both time and money for mixer truck owners and operators.
In terms of its technical capabilities, the pump operates within well-defined pressure and flow parameters. It is engineered to maintain a stable output even when faced with fluctuating loads and operating conditions. Advanced control systems are integrated into the pump design to automatically adjust the hydraulic pressure and flow according to the specific requirements of the mixer drum's operation. For instance, when the drum is filled with a denser or more viscous material, the pump can adapt and increase the power output to ensure seamless rotation.
The compatibility with Eaton systems is a significant selling point. Eaton is a well-established and respected brand in the heavy-duty vehicle component industry. The 6423 pump is designed to integrate flawlessly with Eaton's existing hydraulic and control systems. This seamless integration allows for better communication and coordination between different components within the mixer truck, enhancing the overall performance and reliability of the vehicle. It also simplifies the installation and setup process, reducing the complexity and potential errors during assembly.
Safety is another aspect that has been carefully considered in the design of this pump. It is equipped with safety features such as pressure relief valves. These valves prevent the hydraulic system from over-pressurizing, protecting the pump and other connected components from damage. Additionally, the pump adheres to strict safety standards and regulations, ensuring that it can be operated in a safe and reliable manner, minimizing the risk of accidents or system failures that could endanger the operators and the surrounding environment.
Maintenance of the Mixer Truck Hydraulic Pump 6423 is made relatively convenient. It has easily accessible service points, which facilitate routine inspections, fluid checks, and minor repairs. The modular design of the pump further simplifies maintenance tasks. If a particular component fails or needs replacement, it can be easily detached and replaced without having to disassemble the entire pump. This modular approach reduces downtime and the associated costs, allowing mixer trucks to get back on the road quickly.
In summary, the Mixer Truck Hydraulic Pump 6423 for Eaton is a highly reliable, efficient, and durable component that plays a central role in the proper functioning of mixer trucks. Its combination of excellent performance, compatibility with Eaton systems, safety features, and ease of maintenance makes it an indispensable part of the mixer truck's hydraulic infrastructure, contributing to the seamless operation and productivity of these vehicles in the construction and transportation industries.

Model NO.	6423	Model	6423
Performance	Same as Original	Pressure	40MPa
Lead Time	5 Days	Transport Package	Standard Export Wooden Case
Colour	as Your Request	Usage	Concrete Mixer
Weight	98KG	Specification	52*36*36
Trademark	Bodeke	Origin	China
HS Code	8413503190	Production Capacity	100 Sets/Month

Technical data of Mixer hydraulic pressure
Model	Units	6423	Model	Units	6423
Maximum displacement per revolution	cm³	106	Maximum control pressure	MPa	3.5
Pump displacement per revolution	cm³	30	Filling pressure	MPa	16~25
Maximum pressure	MPa	40	Maximum shell pressure	MPa	const0.25,Peak value0.5
Rated pressure	MPa	26	+Maximum revolution	min-1	2800
The dynamic viscosity range of the working liquid activate turn Optimum state	mm²S-1	1000 12-300 25-35	Minimum revolution	min-1	500
Type of working fluid		Mineral oil	Rated revolution	min-1	1500
Operating temperature	ºC	-40~+50	Shaft steering		clockwise or anticlockwise
Maximum operating temperature in the tank	ºC	80	Maximum swash plate inclination	°	±18°
Working fluid purity	μm	10	Weight(About) kg	KG	96

FAQ
Questions you maybe inquiry
Q1.What's the application for pump?
Construction equipment Steel factory or Power plant Industrial equipment Related hydraulic system
Q2.What about the MOQ?
MOQ:1~300 pcs.
Q3.Are you manufacturer? And what's the delivery time?
Yes, we are manufacturer and have our own factory. Generally, its in stock for common models, 25-30 days will be finished and sent to customer in time.
Q4.If we don't find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q5.How about the inspection and Guarantee of products?
We promise: all products are tested before ship, to confirm it will be working and in good conditions when customers get. Also, we offer 12-month guarantee, if it doesn't work due to quality issue in the period, we will send spares to repair for free.
Q6. What about your after-sale service?
If there is any question in use, please talk with your sales manager at any time, so we will know your problems are and help to solve.
Bodeke Industrial Components Co., Ltd. is a leading Chinese company specializing in the manufacturing and maintenance of a wide range of industrial equipment components. Our products find application in diverse sectors, including cement tanker trucks, excavators, rescue equipment for cement trucks, mixers, cranes, hydraulic motors, hydraulic pumps, and other industrial machinery.

Empower your industrial machinery with Bodeke - a leading Chinese manufacturer specializing in the repair and production of a wide range of equipment components.From cement tanker trucks and excavators to mixer trucks,cranes,hydraulic motors,and pumps,our precision-engineered products redefine reliability and performance.Elevate your operations with Bodeke's quality components-your trusted partner in global industrial excellence.
Gearbox		Pump	Motor
PLM-7 reducer / gearbox	PMP7YR120 reducer / gearbox	4623-552 pump	4633 motor
PLM-9 reducer / gearbox	PMP7.2R129 reducer / gearbox	5423-518 pump	5433-138 motor
CML-10 reducer / gearbox	PMP7.1R130 reducer / gearbox	6423-279 pump	6433 motor
CML-12 reducer / gearbox	PMP7.5R130 reducer / gearbox	4623-552 pump	4633 motor
CML16 reducer / gearbox	PMP7.8R140 reducer / gearbox	5423-518 pump	5433-138 motor
P3301 reducer / gearbox	PMP8.0R140 reducer / gearbox	6423-279 pump	6433 motor
P4300 reducer / gearbox	PMP9YR140 reducer / gearbox	PV22 pump	MF22 motor
P5300 reducer / gearbox	PMP7.5R134 reducer / gearbox	PV23 pump	MF23 motor
P7300 reducer / gearbox	PMP7.5R135 reducer / gearbox	SPV22 pump	SMF22 motor
PLM-7 reducer / gearbox	PMP7.5R136 reducer / gearbox	SPV23 pump	SMF23 motor
PLM-9 reducer / gearbox	PMP6sp reducer / gearbox	PV070 pump	MF070 motor
CML-10 reducer / gearbox	PMP 6.5sp reducer / gearbox	PV089 pump	MF089 motor
CML-12 reducer / gearbox	PMP 7.1sp reducer / gearbox	SPV070 pump	SMF070 motor
CML16 reducer / gearbox	PMP 7.5sp reducer / gearbox	SPV089 pump	SMF089 motor
P3301 reducer / gearbox	PMP 6cp reducer / gearbox	PV110 pump	MF110 motor
P4300 reducer / gearbox	PMP 6.5cp reducer / gearbox	SPV110 pump	SMF110 motor
P5300 reducer / gearbox	PMP 7.1cp reducer / gearbox	PV112 pump	MF112 motor
P7300 reducer / gearbox	PMP 7.5cp reducer / gearbox	SPV112 pump	SMF112 motor
PMB 6.0 reducer / gearbox	575L reducer / gearbox	PV090 pump	MF090 motor
PMB6R100 reducer / gearbox	577L reducer / gearbox	SPV090 pump	SMF090 motor
PMB6.5R120 reducer / gearbox	580L reducer / gearbox	A4VTG71pump	TMM070 motor
PMB7aspR120 reducer / gearbox	575S3W reducer / gearbox	A4VTG90 pump	TMM089 motor
PMB7.1R120 reducer / gearbox	577S3W reducer / gearbox	90C pump	AA2FM63/A2FM90/61W Piston Motor
PMB7YR120 reducer / gearbox	580S3W reducer / gearbox	90A pump	AA2FM80/A2FM90/62W Piston Motor
PMB7.2R129 reducer / gearbox	PM51.2 reducer / gearbox	MA4V090 pump	AA2FM90/A2FM90/63W Piston Motor
PMB7.1R130 reducer / gearbox	PM61.2 reducer / gearbox	PMP P110 pump	90M75 motor
PMB7.5R130 reducer / gearbox	PM71.2 reducer / gearbox	PMP P90 pump	90M100 motor
PMB7.8R140 reducer / gearbox	TMG51.2 reducer / gearbox	PMH P110 pump	MSF85 motor
PMB8.0R140 reducer / gearbox	TMG61.2 reducer / gearbox	PMH P90 pump	PMP M110 motor
PMB9YR140 reducer / gearbox	TMG71.2 reducer / gearbox	A4VTG090HW100/33MRNC4C92F0000AS-0 pump	PMH M90 motor
PMB7.5R134 reducer / gearbox	P58 reducer / gearbox	A4VTG90HW/32R-NLD10F001S pump	PMH M110 motor
PMB7.5R135 reducer / gearbox	P68 reducer / gearbox	A4VTG71 hydraulic piston pump	PMH M90 motor
PMB7.5R136 reducer / gearbox	P70 reducer / gearbox	T90R100-35-20 hydraulic piston pump	A2FO23 PISTON pump
PMB 6sp reducer / gearbox	P75S reducer / gearbox	T90L100 hydraulic piston pump	A2FO16 PISTON pump
PMB 6.5sp reducer / gearbox	P75R reducer / gearbox	T90R75hydraulic piston pump	A2FO18 PISTON pump
PMB 7.1sp reducer / gearbox	P80 reducer / gearbox	T90L75hydraulic piston pump	VB99-17 reducer / gearbox
PMB 7.5sp reducer / gearbox	P90S reducer / gearbox	A11VO40DRG/10R-NPC12N00 PISTON pump	A2FO32/61L-VAB05 PISTON pump
PMB 6cp reducer / gearbox	P90 reducer / gearbox	A11VLO190LRDU2/11R-NZD12K02P-S PISTON pump	HA4VTG090HW/33R
PMB 6.5cp reducer / gearbox	TOP P58 reducer / gearbox	A11VLO190LRDU2+A11VLO130LRDU2 PISTON pump	A4VG125HDMT1/32R-NSF02F021-S Piston pump
PMB 7.1cp reducer / gearbox	TOP P68 reducer / gearbox	A11VLO190LRDU2/11+A10VO28DR/31-K PISTON pump	PK86-BF reducer / gearbox
PMB 7.5cp reducer / gearbox	TOP P70 reducer / gearbox	A11VLO190LRDU2/11L-NZD12K02P-S PISTON pump	VB99-09 reducer / gearbox

---
