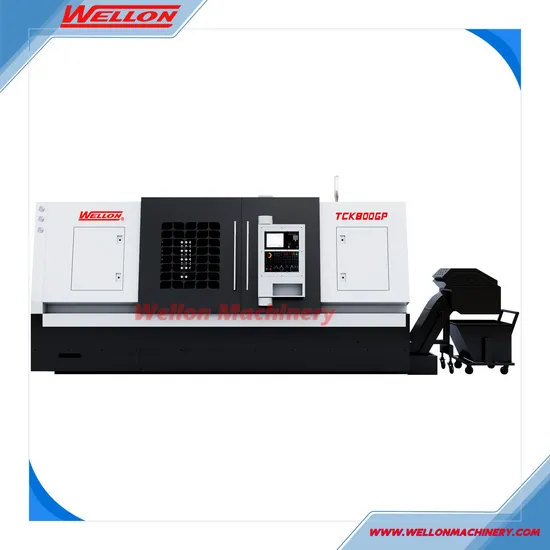

Slant Bed CNC Turning Machining Center Tck800gp Horizontal CNC Lathe Machine Center

Product Description

Product Description
Products Description:
Slant Bed CNC Turning Machining Center Tck800gp Horizontal CNC Lathe Machine Center
Performence Features:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular arc ,circular cone,inside and outside surface of revolved body.
This machine is widely used in sanitary,valve ,electrical
appliance,instrument,automobile,motorcycle, bearings and so on.
Higher accuracy Taiwan Linear guideways.
High speed spindle unit.
Higher rigidity cast iron.
Integrated automatic lubrication
30 degree One-piece casting slant bed.
Technical parameter: ,

Specifications	Unit	TCK800GP
Max.swing over bed	mm	830
Max. turning diameter	mm	620
Max.swing over cross slide	mm	460
Max. turning length	mm	900
Spindle nose	A2	A2-11/A2-15
Chuck size	Inch	12''
Spindle motor power	kw	18.5
Max.spindle speed	rpm	1800
Spindle bore	mm	102/132
Max.bar dia. through spindle hole	mm	88/117
Bed slant angle	Degree	30°
X/Z axis leadscrew diameter	mm	40/50
X/Z axis linera guideway width	mm	45/45
X axis limit Travel	mm	330
Z axis limit Travel	mm	1230
X/Z axis motor torque	Nm	22/22
X/Z axis motor power	kw	3.0/3.0
Tailstock travel	mm	1085
Tailstock quill travel	mm	80
Tailstock quill diameter	mm	100
Tailstock taper	Morse	MT5
Machine weight	kg	8600

Standard accessories

Fanuc 0i TF plus controller

Main motor and servo motor from Fanuc

Linear guideway from THK

Ball leadscrew from THK

Hollow hydraulic chuck

Foot switch for chuck clamp and tailstock

Tool measurement probe Renishaw

Hydraulic programmable tailstock

Hydraulic stations

Hydraulic turret 12 tools

6 tool seat (2 external,2 internal,2 boring)

Telescopic covers

Full closed cover

Coolant system

Lubricating system

Work lamp

Tri-color alarm lamp

Safty door

USB interface

Chain type chip conveyor

Air gun + Water gun

Electric components

Live center

Tools and tool box

English Manual

Optional accessories

Power turret BMT65

Extra Radial live head

Extra Axial live head

C axis Function

Y axis travel ±45mm

Part catcher

Servo type bar feeder
