Plastic Flake Dewatering Machine Vertical Drying Machine Dryer

Product Description

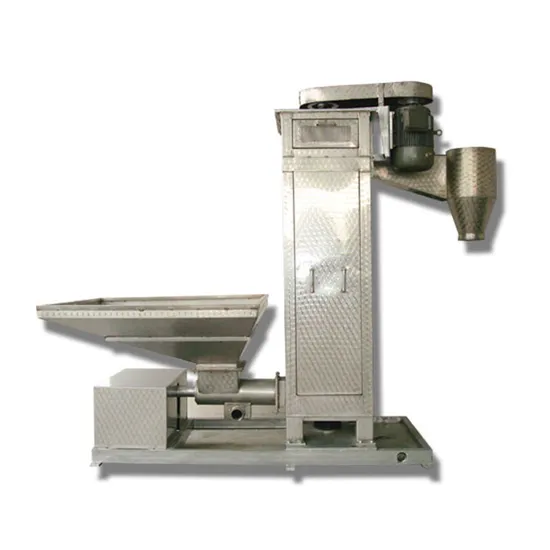

Vertical Plastic Dewatering Machine For Plastic Recycling Washing Line
Special Features:
1.Especially suitable for dewatering and drying all kinds of plastic flakes/granules.
2.The parts direct contacting with the raw material made of stainless steel material and can be customized as customer requests.
3.Can be used separately or used in production line for continuous process.Capacity is 800-1000kg/h.
4.Good adaptability and long service life.
5.Using electrical control security design to ensure the safety of operators.
6.Dewatering rate can reach up to 95%.
7.We can design the machine according to the customer's requirements.

Model	Rotor size (mm)	Main motor (KW)	Feeding Motor (KW)	Water supply (L/Min)	Capacity (KG/H)	Dimension L*W*H (mm)	Feeding position (mm)			Total weight (KG)
							A	H	H
VE-F380	Φ380X1545mm	7.5kw	1.5kw	20-40 L/min	600-1500	3020X1140X2350	860X860	1100	1150	1200kg
VE-F420	Φ420X1545mm	11kw	1.5kw	20-50 L/min	800-2000	3020X1140X2350	860X860	1100	1150	1400kg
VE-Y380	Φ380X1615mm	7.5kw	1.5kw	20-40 L/min	600-1500	2240X880X2440	660X660	1050	1050	1200kg
VE-Y420	Φ420X1615mm	11kw	1.5kw	20-50 L/min	800-2000	2240X960X2440	660X66	1050	1050	1400kg

---
